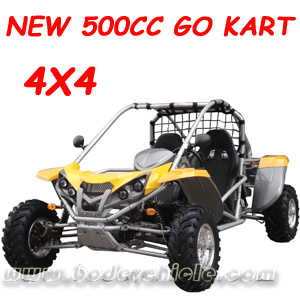

New 4x4 500cc Go Kart Dune Buggy (MC-442)

Specifications

Prod Model:	MC-442

Product Description

New 4x4 500CC Go Kart buggy Dune Buggy
1) Engine type: 500CC, water cooled, 4-stroke single-cylinder, with inner reverse
2) P Max.: 24km/6500r/min
3) T Max.: 38.8N. M/5500r/min
4) Cylinder bore: 87.5mm
5) Start mode: Electric
6) Power sourc: Battery 12V18HA
7) Displacement: 493 ML
8) Comperession ratio: 10: 01
9) Ignition: CDI
Dimension and weight
1) Wheel base: 2340 mm
2) Rider: Double
Performance
1) Top speed: 80km/h
2) Starting: <15s
3) Parking trig: Mechanical lock
4) Fuel: RQ-90(leadless)
5) Lubricate oil brand: SAE15W-40/SF
6) Gas tank capacity: 16L
7) Engine oil capacity: 2.2L
8) Headlight: 12V35W
9) Tailight: 12V21w/5w
10) Climb capacity: 18 degree

Chassis
1) Distance between wheels: (F/R)1, 340mm/1, 340mm
2) Seat distance: 450mm
3) Front brake hydraulic DISC brake by foot control
4) Rear brake: Hydraulic DISC brake by foot control
5) Tire(F/R): 25X8-12 / 25X10-12

Transmission
1) Transmission: Shaft (4X4)
2) Clutch: AVTO

Available options
1) Wheel hub: Aluminum
2) Front /rear tire: Road tire, cross-country tire
3) Rearview mirror: With EC, or without EC
4) Headlight: Four headlights with EC

Others
1) Frame: Steel tube
2) Front suspension: Double A arm
3) Rear suspension: Swing type

Packing:
Steel frame and carton
Carton dimensions:
3, 000mm x1, 680 x 880 mm

Container:
4PCS/20 12PCS/40HQ
N. W.: 450kgs
ATV and go kart HS code: 8703101100
