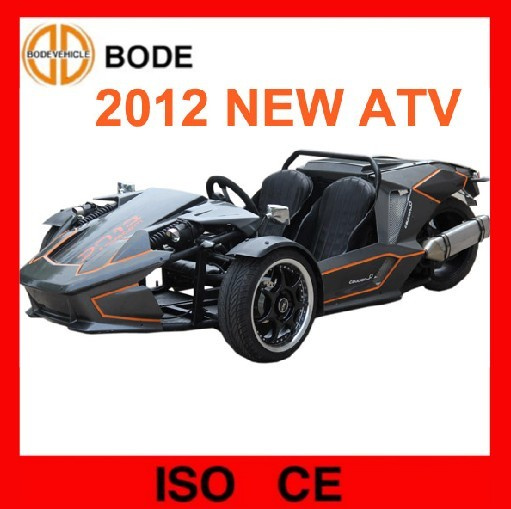

New 250CC ATV Trike (MC-369)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
| Pay Type: | T/T,Western Union |
Specifications
| Prod Model: | trike |
|---|
Product Description
1. Type: Single cylinder, water-cooling, 4-stroke2. Transmission: 4 gears with one reverse gear, manual cluth
3. Ignition mode: CDI
4. Compression propor: 10.5: 1
5. Power: 9.6KW/7, 500rpm
6. Max. Torque: 12.7N. M/6, 000rpm
7. Displacement: 243ml
8. Start mode: Electric
9. Transmission mode: Chain
10. Min. Ground clearance: 100mm
11. Max. Speed: >70km/h 120KM/H
12. Power source: 12V, 12AH
13. Fuel tank capacity: 10L
Chassis
1. Front wheels: 185/30-R14
2. Rear wheels: 295/30-R14
3. Break type(F/R): Disc/disc
4. Front hanging: Double arm-swing
5. Rear hanging: Integral
6. Dimensions
7. Product dimensions: 2650x1650x770mm
8. Carton dimensions: 2600x1150x750mm
9. Wheelbase: 1450mm
10. Height of seats: 17mm
11. Dry weight: 250kg
12. Load capacity: 225KG
13. Climbing degree: >20
Other
Conveyance: Qty/20' GP: 12
Qty/40' GP: 24
Qty/40' HQ: 24
ATV and go kart HS code: 8703101100
