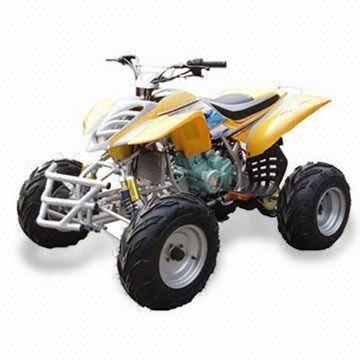

New 200cc Oil-Cooled ATV (ATV200S-4)

Specifications

Prod Model:	ATV200S-4

Product Description

Features:
1) Dimensions (L x W x H): 180 x 112 x 113cm
2) Wheel base: 115cm
3) Engine type: 200cc, single cylinder, Oil-Cooled, 4-stroke
4) Start mode: Electric
5) Power: 10. 3kW/7, 500rpm
6) Max. Torque: 15N. M /6, 000rpm
7) Max. Speed: 75km/h
8) Min. Ground clearance: 120mm
9) Dry weight: 155kg
10) Transmission mode: Chain
11) Break type (F/R): Drum / disc
12) Power source: 12V, 9Ah
13) Climbing degree: 20 degrees
14) Fuel tank capacity: 4L
15) Front hanging: Integral ballonet absorber
16) Rear hanging: Inner ballonet absorber
17) Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 10 - 10
18) Cylinder size: 63. 5 x 62. 2mm
19) Displacement: 197mL
20) Transmission: 4 gears with one reverse gear, manual clutch
21) Height of seats: 880mm
22) Min. Turning radius: 2, 650mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Load capacity: 150kg
26) Engine oil: 1. 1L
27) Gas cylinder number: 1
28) Max. Number of riders: 1
29) Lubrication: Press splash
30) Compression proportion: 9. 2: 1

Outer packing:
Dimensions: 148 x 85x 88cm

Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units

We are a professional manufacture, Mainly producing all kinds of ATV, QUAD, MINI ATV, MINI QUAD, CHILDREN ATV, Go Kart, Dirt Bike, Motorcycle, Scooter and Pocket Bike
