Specifications
Prod Model: |
GM200-24 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine Type: |
4-Stroke |
Displacement: |
126-250CC |
Certification: |
EEC |
Type: |
Racing Motorcycle |
Condition: |
New |
Fuel: |
Gas / Diesel |
Product Description

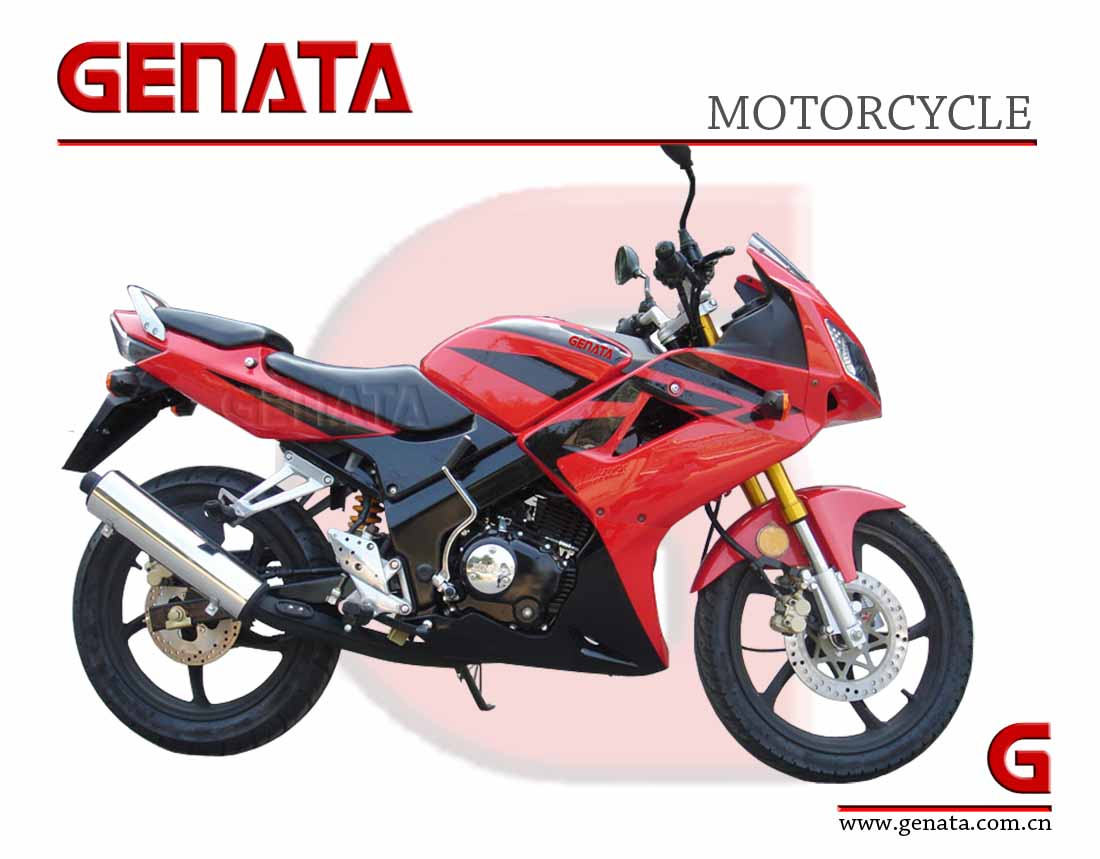

200CC Motorcycle
125cc / 150cc / 200cc are available for this model.
EEC certification
Japan brand made in China Good quality
ENGINE |
|
Engine Type |
Single Cylinder, 4 Stroke, Air Cooled |
Bore X Stroke (Mm) |
62×49.5 |
Compression Ratio |
9.0:1 |
Max. Power (Kw/R/Min) |
10.8/8000 |
Max. Torque (n.m/r/min) |
13.0/7000 |
Displacement |
200cc |
Max. Speed (km/h) |
90 |
Lubrication |
Pressure and Splash |
Ignition: |
CDI |
Starting System |
Kick/electric start |
Clutch Method |
Manual |
Transmission System |
Wet multi-Plate, International 5 Gears |
BODY |
|
Front Suspension |
Up-side-down Double Absorber |
Rear Suspension |
Single Absorber |
Front/Rear Brake |
Disc/Disc |
Front Tire |
80/90-17 |
Rear Tire |
110/80-17 |
Battery |
12V7AH |
DIMENSIONS AND OTHERS |
|
L ×W × H (mm) |
2010×689×1140 |
Seat Height (mm) |
650 |
Wheel Base(mm) |
1350 |
Turning Radius (mm) |
2250 |
Ground Clearance (mm) |
200 |
Loading Capacity(kg) |
140 |
Climb Ability(°) |
18 |
Net Weight (kg) |
125 |
Gross Weight(kg) |
140 |
Fuel Tank Capacity (L) |
12 |
Packing Size (Mm) |
1850×580×880 |
Container Loading |
20" GP:24pcs 40" GP:50pcs 40" HQ:75pcs |
