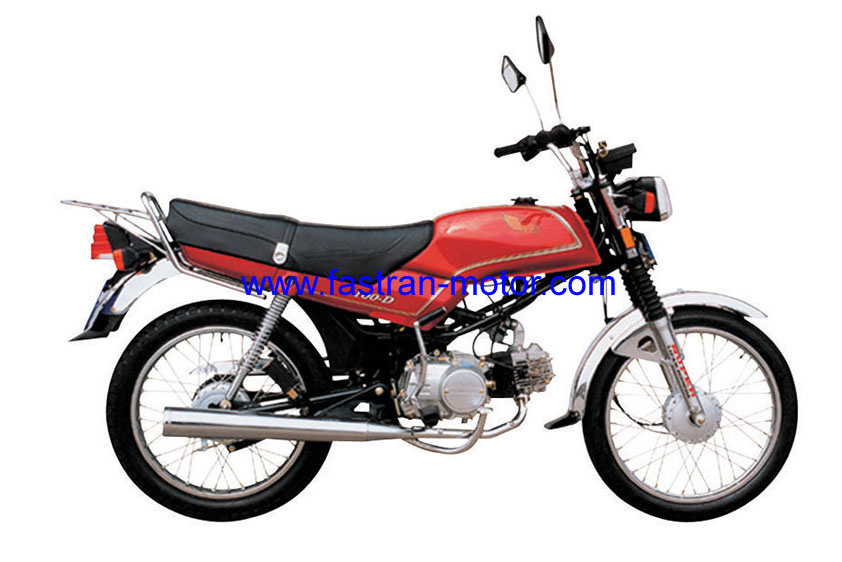

Motorcycle (FR100-B)

Specifications

Prod Model:	FR100-B

Product Description

Model: FR100-B
Main technical specifications:
Dimension ((L*B*H mm)1930*800*1120
Wheel base (mm): 1245
Min. Ground Clearance (mm): 130
Dry Weght: 100kg
Engine Type: Single-cylinder, air-cooled, four-stroke
Engine model: 1P50FMG-2
Bore*Stroke: 50mm*49.5mm
Displacement: 100ml
Maximum Power 5.2kw/7500r/min
Maximum Torque: 7.0N. M/5500r/min
Clutch: Wet multi-plate
Lubrication: Pressure/splassh
Start: Kick start
Ignition: C. D. I
Max. Speed (km/h): 75km/h
Economical Fuel Consumption (l/100km): ≤1.9LL/100Km
Front Type Size and Air Pressure: 2.50-18/175KPa
Rear Type Size and Air Pressure: 3.00-17/200KPa
Climbing Ability (' ): ≥18'
Exhaust Index: CO≤3.8%, HC≤800ppm
Start Performance: ≤15s
Brake Performance: ≤7m/30km/h
