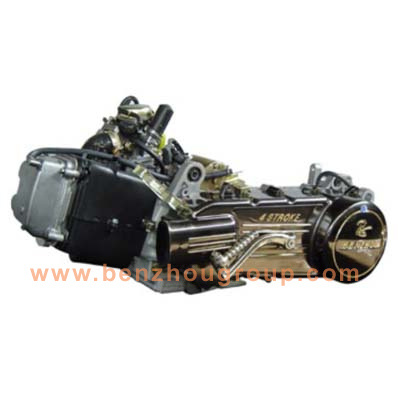

Motorcycle Engine (BZ152QMI)

Specifications

Prod Model:	BZ152QMI

Product Description

Product Name:Motorcycle Engine
Model Number:BZ152QMI
Place of Origin:China
Payment Terms:T/T or L/C

Specifications:
1) Engine type:Single cylinder, 4-stroke, air-cooled
2) Max.Power:7.2kW/6000rpm
3) Standard power:5.2kW/7000rpm
4) Max.Torque & rotational speed:5.8N.M/7500rpm
5) Min.Fuel consumption:400kg/kW.H
6) Min.Unloaded rotational speed:1500 ± 100rpm
7) Cylinder diameter:52.4mm
8) Piston distance:57.8mm
9) Displacement:124.6ml
10) Compression rate:9.2:1
11) Spark plug angle:13~28o
12) Rotating direction:Left
13) Ignition:CDI
14) Lubrication:Pressed-splash
15) Start mode:Electric/kick-start
16) Transmission:
A) Clutch mode:Dry auto-centrifugal force
B) Gear shift:Automatic transmission
C) Transmission mode:Belt
17) Parts specifications:
A) Carburetor:PD24J, vacuum film
B) Magneto:CFW125
C) Spark plug:A7RTC
D) Air cleaner type:Paper core
E) Muffler type:Resistant or double type
F) Exhaust muffler cleaner type:BZ4070A
G) Oil pump mode:Rotor type
H) Starting motor mode:MQD125/HW
18) Gasoline:#90
19) Lubricant:SAE 15W/40
20) Lubricating oil capacity:900ml
21) Dimensions (L x W x H):630 x 390 x 330mm
22) N.W.:27kg
