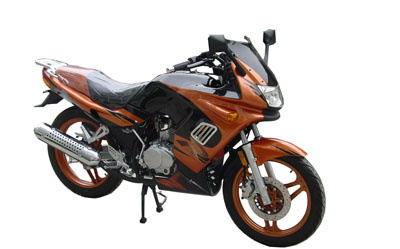

Motorcycle(CM150-10)

Specifications

Prod Model:	CM150-10

Product Description

Specifications:

Cylinder Arrangement Single- Cylinder
Transmission System 5 speed rorary
Bore*Stroke(mm) 62.0*49.5
Piston Displacement(CC) 149.4
Compression Ratio 9.0:1
Maximum Power(KW/r/min) 8.2/8600
Maximum Torque(N.M./rpm) 8.8/8000
Starter System Elec/Kick
Lubrication Pressure/Spash
Transmission Chain
Overall Length(mm) 2060
Overall Width(mm) 710
Overall Hight(mm) 1160
Wheel Base(mm) 1340
Front Track(mm) 230
Rear Track(mm) 400
Seat Hight(mm) 890
Min. Turning Radius (mm) 2250
Ground Clearance(mm) 150
Rider Capacity 2 person
Dry Weight 145Kg
Brake(Front/Rear) Front: Disk/ Rear: Drum
Tyre, Front 3.00-18
Tyre, Rear 3.50-18
Ignition Type CDI
Fuel Tank Capaciry(L) 13
Gear Oil Capacity(L) 1.1
Front Suspension Liquid pressure damp
Rear Suspension Spring liquid pressure
Parking Brake 7m/30km/h
Max. Load Capacity(Kg) 150Kg
Battery 12V-7AH
Loading
Valve train
Cooling System Air-cool
Carburetor PZ27
Clutch Wet multi-plate
Low gear ratio 2.769
Hight gear ratio 0.960
Secondary reduto 1.130
Regulator/rectifier Full wave DC
Type 4-Stroke, single cylinder
Displacement 149. 4mL
Strarting Electric and kick starter
Valve control OHV
Combustion chamber Hemisphere
Bore*Stoke 62.0*49.5
Compression ratio 9.0: 1
PS-rpm Horsepower max. 12PS/8600
Kg-m/rpm Twisting force max.0.90/8000
Oil consumption(g/Kw.H) 354
Net weight 33Kg
1. Change speed gear system
Type 5Speed International gear
Change speed form kick
Output from crank Face gear
Primary reduction ratio 4.055
Ldling-Speed 1500rpm
Ratio of gear First gear transmission ratio 2.769
2nd gear transmission ratio 1.882
3nd gear transmission ratio 1.400
4th gear transmission ratio 1.130
5th gear transmission ratio 0.960
2nd gear transmission ratio Chain
Transmission 2.800
Final reducing ratio 10.90~31.44
2. Clutch
Type Moist
Operation Head control
Quantity 5
Electric system
Battery 12V-7AH
Lgnition system
Type CDI
Lgnition cycle
Spark plug type D8EA/T2198
Spark plug spec M12 *1.25
Spark plug gap 0.6~0.7
Lubrication way
Lubrication way Pressure & splash
Filer type Screen
Oil pump
Type Prndulum gear type
Spit volume 4.8L/4600rpm
Lubrication oil
Class 15W/40SE
Lubrication location Gearbox
Volume 1.1L
