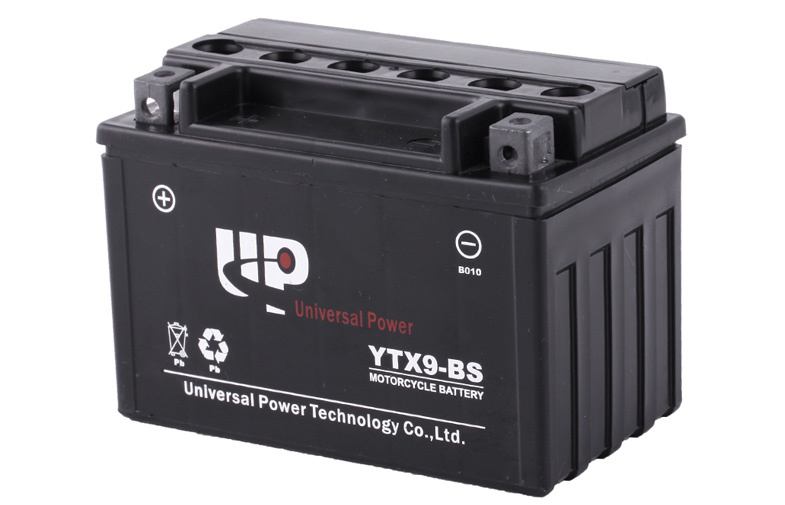

Motorcycle Battery (YTX9-BS)
| Price: | US $ 11.9/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | YTX9-BS |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 151*87*106 |
| Voltage: | 12V |
| Capacity: | 8ah |
| Application: | Scooter/E-Bike/Motorcycle |
| Certification: | SONCAP |
| Rated Capacity: | 12 |
Product Description
Specifications:
Model:YTX9-BS
Voltage:12V
Capacity:8A/10Hrs
Dimensions in M M:150*87*105(±2mm)
Dimensions in inch: 5.9*3.43*4.13(±0.08 inch)
Features:
1.Maintenance Free
2.Long service life.
3.Low self-discharge
4.Optimized design
5.Sealed and non-spillable AGM Technology
6.Reliable starting power and performance
Applications:
1. MOTORCYCLE
2. ATV
3. SCOOTERS
3. SNOWMOBILE
4. LAWN MOWER
5. WATER CRAFT—JET SKI
6. OTHER UTILITY VEHICLES
| Type |
Voltage (V) |
Same Dimensions as YUASA Type | Capacity Ah/10HR | Dimensions(±2mm) | Weight w/o Acid (kg) | Acid Volumn (liter) | Regular Charge Current (amp.) |
Assembly Figure |
Terminal Type |
CCA @-18C |
||
| L | W | H | ||||||||||
| YTR4A-BS | 12 | 2.3 | 113 | 48 | 85 | 0.83 | 0.13 | 0.23 | 10 | 30 | ||
| YT4B-BS | 12 | 2.3 | 113 | 39 | 85 | 0.78 | 0.12 | 0.23 | 11 | 30 | ||
| YB2.5L-BS | 12 | YB2.5L-C | 2.5 | 80 | 71 | 103 | 0.79 | 0.19 | 0.25 | 25 | ||
| YB3L-BS | 12 | YB3L-B | 3 | 98 | 56 | 110 | 0.98 | 0.19 | 0.30 | 5 | 32 | |
| YT4L-BS | 12 | 3 | 114 | 70 | 85 | 1.11 | 0.19 | 0.30 | 4 | 40 | ||
| YTX4L-BS | 12 | 3 | 114 | 70 | 85 | 1.11 | 0.19 | 0.30 | 4 | 40 | ||
| YB4L-BS | 12 | YB4L-B | 4 | 120 | 70 | 92 | 1.42 | 0.23 | 0.40 | 4 | 50 | |
| YTX5L-BS | 12 | 4 | 114 | 70 | 105 | 1.54 | 0.25 | 0.40 | 4 | 55 | ||
| YTZ5-BS | 12 | YTZ5-S | 4 | 114 | 70 | 85 | 1.25 | 0.19 | 0.40 | 4 | 45 | |
| YB5L-BS | 12 | YB5L-B | 5 | 120 | 61 | 128 | 1.44 | 0.33 | 0.50 | 4 | 50 | |
| YTZ6-BS | 12 | YTZ6S | 5 | 114 | 70 | 105 | 1.55 | 0.29 | 0.50 | 4 | 55 | |
| YTZ7-BS | 12 | YTZ7S | 5.5 | 114 | 70 | 105 | 1.55 | 0.29 | 0.55 | 4 | 60 | |
| YT7B-BS | 12 | YT7B-4 | 5.5 | 150 | 65 | 92 | 1.69 | 0.33 | 0.55 | 9 | 70 | |
| YTX7A-BS | 12 | 6 | 150 | 87 | 93 | 1.97 | 0.37 | 0.60 | 4 | 85 | ||
| YTX7L-BS | 12 | 6 | 114 | 70 | 130 | 2.02 | 0.36 | 0.60 | 4 | 75 | ||
| YTX6.5L-BS | 12 | 12N6.5-3B | 6.5 | 139 | 66 | 102 | 1.87 | 0.31 | 0.65 | 5 | 60 | |
| YB7B-BS | 12 | YB7B-B | 7 | 147 | 59 | 130 | 1.93 | 0.43 | 0.70 | 5 | 70 | |
| YT9B-BS | 12 | YT9B-4 | 7.5 | 150 | 69 | 102 | 2.08 | 0.42 | 0.75 | 9 | 80 | |
| YTR9-BS | 12 | 8 | 150 | 87 | 106 | 2.42 | 0.43 | 0.80 | 9 | 120 | ||
| YTX9-BS | 12 | 8 | 150 | 87 | 105 | 2.42 | 0.44 | 0.80 | 4 | 90 | ||
| YTX9L-BS | 12 | 8 | 150 | 87 | 105 | 2.42 | 0.44 | 0.80 | 4 | 90 | ||
| YTZ10-BS | 12 | YTZ10-S | 8.5 | 150 | 87 | 95 | 2.59 | 0.44 | 0.85 | 9 | 130 | |
| YB9-BS | 12 | YB9-B | 9 | 135 | 76 | 137 | 2.25 | 0.50 | 0.90 | 5 | 90 | |
| YT12B-BS | 12 | YT12B-4 | 10 | 150 | 69 | 130 | 2.63 | 0.54 | 1.00 | 9 | 110 | |
| YTX12A-BS | 12 | 10 | 150 | 87 | 106 | 2.67 | 0.49 | 1.00 | 9 | 120 | ||
| YTX12-BS | 12 | 10 | 150 | 87 | 130 | 3.14 | 0.57 | 1.00 | 4 | 160 | ||
| YTX12L-BS | 12 | 10 | 150 | 87 | 130 | 3.14 | 0.57 | 1.00 | 4 | 160 | ||
| YTZ12-BS | 12 | YTZ12S | 11 | 150 | 87 | 110 | 3.13 | 0.53 | 1.10 | 9 | 140 | |
| YTZ14-BS | 12 | YTZ14S | 11.2 | 150 | 87 | 110 | 3.13 | 0.53 | 1.12 | 9 | 140 | |
| YT14B-BS | 12 | YT14B-4 | 11.5 | 150 | 69 | 145 | 3.00 | 0.60 | 1.15 | 9 | 135 | |
| YTX14-BS | 12 | 12 | 150 | 87 | 146 | 3.58 | 0.69 | 1.20 | 4 | 180 | ||
| YTX14L-BS | 12 | 12 | 150 | 87 | 146 | 3.58 | 0.69 | 1.20 | 4 | 180 | ||
| YTX14AH-BS | 12 | 13 | 134 | 89 | 166 | 3.59 | 0.64 | 1.30 | 7 | 160 | ||
| YTX14AHL-BS | 12 | WP14L-2 | 13 | 134 | 89 | 166 | 3.59 | 0.64 | 1.30 | 7 | 160 | |
| YTX15-BS | 12 | 13 | 175 | 87 | 130 | 4.23 | 0.70 | 1.30 | 4 | 180 | ||
| YTX15L-BS | 12 | 13 | 175 | 87 | 130 | 4.23 | 0.70 | 1.30 | 4 | 180 | ||
| YTX16-BS | 12 | 14 | 150 | 87 | 159 | 3.95 | 0.77 | 1.40 | 4 | 200 | ||
| YTX16L-BS | 12 | 14 | 150 | 87 | 159 | 3.95 | 0.77 | 1.40 | 4 | 200 | ||
| YTX16-BS-1 | 12 | 14 | 150 | 87 | 159 | 3.95 | 0.77 | 1.40 | 1 | 200 | ||
| YTX16L-BS-1 | 12 | 14 | 150 | 87 | 159 | 3.95 | 0.77 | 1.40 | 1 | 200 | ||
| YTH16-12 | 12 | 14 | 151 | 87 | 158 | 3.95 | 0.72 | 1.40 | 4 | 200 | ||
| YTX20CH-BS | 12 | YTX20A-BS | 18 | 150 | 87 | 161 | 4.37 | 0.87 | 1.80 | 9 | 220 | |
| YTX20-BS | 12 | 18 | 175 | 87 | 155 | 4.73 | 0.91 | 1.80 | 4 | 210 | ||
| YTX20L-BS | 12 | 18 | 175 | 87 | 155 | 4.73 | 0.91 | 1.80 | 4 | 210 | ||
| YTX20H-BS | 12 | 18 | 175 | 87 | 155 | 4.60 | 0.89 | 1.80 | 4 | 250 | ||
| YTX20HL-BS | 12 | 18 | 175 | 87 | 155 | 4.60 | 0.89 | 1.80 | 4 | 250 | ||
| YTX20HL-BS-PW | 12 | WITH 20MM SPACER | 18 | 175 | 87 | 175 | 4.74 | 0.95 | 1.80 | 4 | 250 | |
| YTX19-BS | 12 | 19 | 175 | 100 | 155 | 5.27 | 0.96 | 1.90 | 4 | 190 | ||
| YTX19L-BS | 12 | 19 | 175 | 100 | 155 | 5.27 | 0.96 | 1.90 | 4 | 190 | ||
| YTX18-BS | 12 | 20 | 205 | 87 | 162 | 5.61 | 1.12 | 2.00 | 4 | 240 | ||
| YTX18L-BS | 12 | 20 | 205 | 87 | 162 | 5.61 | 1.12 | 2.00 | 4 | 240 | ||
| YIX50-BS | 12 | 20 | 205 | 87 | 162 | 5.61 | 1.12 | 2.00 | 4 | 240 | ||
| YIX50L-BS | 12 | 20 | 205 | 87 | 162 | 5.61 | 1.12 | 2.00 | 4 | 240 | ||
| YTX19CL-BS | 12 | 21 | 175 | 100 | 175 | 6.11 | 1.14 | 2.10 | 4 | 210 | ||
| YTX24HL-BS | 12 | 24 | 205 | 87 | 162 | 6.31 | 1.14 | 2.40 | 4 | 300 | ||
| YIX30-BS | 12 | 28 | 168 | 127 | 177 | 7.14 | 1.38 | 2.80 | 4 | 280 | ||
| YIX30L-BS | 12 | 28 | 168 | 127 | 177 | 7.14 | 1.38 | 2.80 | 4 | 280 | ||
| YB30CL-BS | 12 | YB30CL-B | 30 | 168 | 132 | 192 | 7.97 | 1.62 | 3.00 | 4 | 300 | |
| YTX53030-BS | 12 | 53030/Y60-N30L-A/B | 30 | 186 | 130 | 170 | 7.25 | 1.65 | 3.00 | 3 | 300 | |
