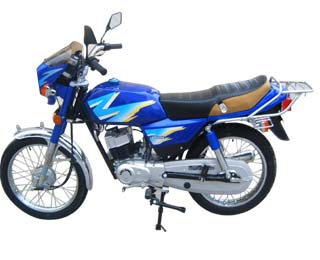

Motorcycle (AX100)

Specifications

Prod Model:	AX100

Product Description

Mode: AX100 Street Bike
Vehicle Type: Single cylinder, 4stroke
Cylinder Arrangement: Erection type
Transmission System: 4 gear shift
Bore*Stroke(mm): 50*50
Piston Displacement(CC): 98
Compression Ratio: 6.6: 1
Maximum Power(KW/r/min): 6.1kw/7000rpm
Maximum Torque(N. M. /rpm): 8.55N. M/7500rpm
Starter System: Kick starter
Lubrication: Separated valve
Transmission: Main (subsidy) shaft

Overall Length(mm): 1900mm
Overall Width(mm): 725mm
Overall Height(mm): 1060mm
Wheel Base(mm): 1215mm
Front Track(mm): 115mm
Rear Track(mm): 65mm
Seat Height(mm): 855mm
Min. Turning Radius (mm): 3300mm
Ground Clearance(mm): 145mm
Rider Capacity: ≥20
Dry Weight: 95kg

Brake(Front/Rear) (F)Disc/(R)drum
Tyre, Front: 2.50-18
Tyre, Rear: 2.75-18
Ignition Type: CDI
Fuel Tank Capaciry(L): 12L
Oil Capacity(L): 2L
Parking Brake: ≤7m
Max. Load Capacity(Kg): 140kg
Battery: 6V4AH
Cooling System: Air cooling
Clutch Wet, multi-plate
Low gear ratio: 2.909
High gear ratio: 0.955
Secondary gear ratio: 0.955-2.909
