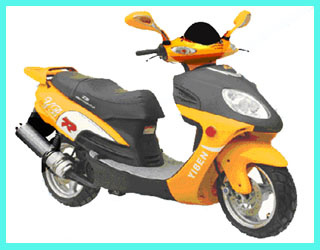

Motorbike (HLG250T-6)

Specifications

Prod Model:	HLG250T-6

Product Description

Art Code HLG250T-6
Range MOTORCYCLE --- scooter
Name
Technical 1. Dimensions: 1, 985 x 690 x 1, 155(L x W x H mm)
2. Wheelbase: 1, 380(mm)
3. Groog Weight: 138(kg)
4. Dry Weight: 132 (kg)
5. Max Load: 150 (kg) 4.
6. Max. Speed: 120 (km/h)
7. Oil tank capacity: 6 +- 0. 5(L)
8. Tyre and rim: F.: 130/60-13/ R.: 130/60-13
9. Brake style: F. Disk / R. Disk
10. Absorber style: Independent hanging
11. Battery: 12V7AH
Parameter of Engine
1. Engine type: 172MM
2. Displacement: 257(ml)
3. Eengine Style: Cylinder, water-cooled, 4-stroke
4. Broe*stroke: 72. 5*66. 8(mm)
5. Ignition: C. D. I
6. Spark plug: A7RTC 5.
7. Max power: 14(Kw/7000min-1)
8. Max torque: 20(N. M/6500min-1)
9. Max. Noise: 83. (dB)
10. Impression Ratio: 9. 2 +- 0. 1: 1
11. Transmission type: Strap
12. Lubrication: Pressure Splash
13. Starting tyre: Eletrick/kick
14. Oil consumption: 3. 2L/100km
15. Clutch: Wet type, automatism centrifugal
Packing: Outer carton inner hob
Packing Vol:
1900*580*1060 (L x W x H mm)
Container capacity:
40'FT: 50 Unit;
20'FT: 24 Unit;
