Specifications
Prod Model: |
D09 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Jin Bai He |
Place Of Original: |
Nanjing, Jiangsu |
Expand Dimension: |
968X565X925mm |
Folded Dimension: |
780X565X320 |
Frame Material: |
Aerospace Titanium-Aluminum Alloy |
Battery Type: |
Lithium Battery |
Colour: |
Blue/Yellow/Silver or as Request |
Guarantee: |
5 Years for Wheelchair,1 Years for Accessory |
Max Load: |
120kg |
Product N.W.: |
24kg |
Power Supply: |
Electric-Powered |
Type: |
Wheelchair |
Using Ambient: |
Outdoor |
Using Site: |
Move Inconvenience |
Product Description

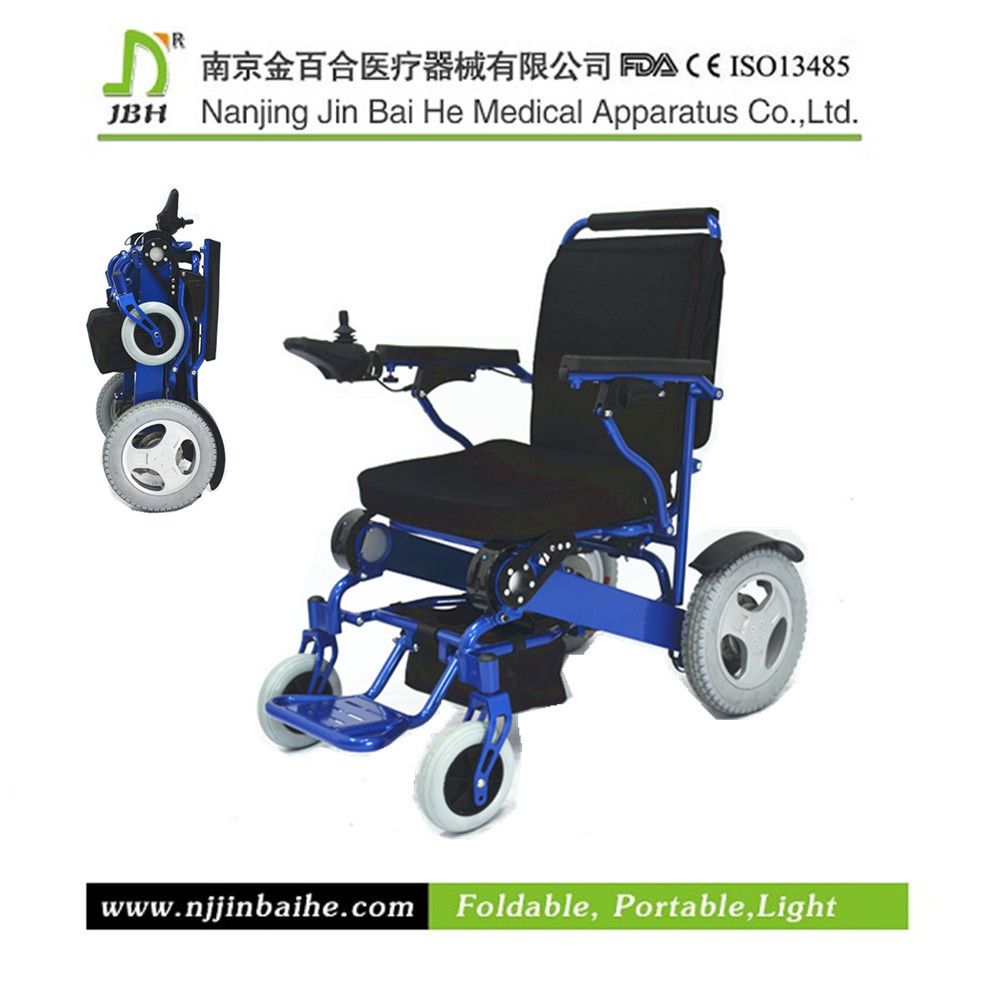

motor wheelchair mobility electric scooter
Key Features:
1. 5-seconds folding/ unfolding,easy carry as a luggage on plane or on train.
2. Very light weight (24kgs)
3. Frame material: 7003 aerospace titanium-aluminum alloy
4. Certificates: CE;FDA;ISO9001; ISO13485;
5. High efficiency brushless hub motor
6.The warranty period of frame is 4 years and other parts is 1 years
Specifications:
Product Name: | motor wheelchair mobility electric scooter |
1. Model No.: | D09 |
2. Expand Dimension: | 968x565x925mm |
3. Folded dimension: | 780x565x320mm |
4. Motor: | 180W X 2 brushless motor |
5. Braking system: | Intelligent type electromagnetic brake |
6. Charging time: | 5 hours |
7. Max Speed : | 6 km/h |
8. Loading capacity : | 120KG |
9. Battery type : | 1 pc lithium (12AH/20AH, DC 24V) |
10. Running distance: | 25km |
11. Seat width: | 440mm |
12. Seat depth: | 400mm |
13. Climbing Slope: | 12° |
14. Front/rear wheel diameter: | 7.5"/12" PU |
15. N.W.: | 24KG |
Company Brief:
Nanjing Jin Bai He Medical Apparatus Co., Ltd located in Nanjing, and specialized in Manual Wheelchair, Electric Wheelchair, Electric Standing wheelchair, Electric Climbing wheelchair, Knee Walker and Scooter. Our factory area covers about 1000 square meters.
Jin Bai He has integrated research & development department, producing department, purchasing department, design department, QC department and sales department with more than 100 employees.
Our factory and products gained ISO9001:2000 and ISO13485:2012 certificates; also approved with FDA and CE certificates. We ensure every our product is with top quality and safety using.
DAVID as Jin Bai He's registered trademark is a famous wheelchair brand in domestic market. We are famous for the wheelchairs with "SAFE, LIGHT, PORTABLE".
Our products include Home Care, Rehabilitation Nursing, Professional Sports, Scooter series and etc.
Our Service:
OEM services:
(1) Put logo on the products
(2) Printing logo on the carton box ,if color box ,each item MOQ is 2000pcs
(3) We can change the accessories according to customer's request .according to hospital bed tender.
After-sale Service:
1. One year warranty under normal use.
2. If the quality problem, please contact us within 24 hours after received of the goods, we'll solve it immediately.
3. Under special circumstances, we'll re-send the spare parts or new products to the customers.
4. Keep the best service in business, we'll get more cooperation with you.
We care from every detail and keep close contact with customers for the process. Our goal is to make customers happy and proud of us!
FAQ
.Q1: Why Choose JIN BAI HE (DAVID) Products?
A1: We are one of the professional wheelchair factory here in China,
Best production capability ,Best quality control, Best Service,
We started up as a factory, manufacturing wheelchairs, electric scooter, Knee rehabilitation equipment,specialize in lightweight portable folding electric power wheelchair.
Q2: How is JIN BAI HE (DAVID) Products Quality?
A2:We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products . Every products will inspected to the standard before shipment, and every product has one year warranty period.
Q3:What is your MOQ(Minimum Order Quantity )?
A3: As a factory, our MOQ is a 20 GP container, it could be mixed the different models.
Q4: Payment and shipment
A4: We accept: L/C, T/T,WESTERN UNION;
Delivery time: Within 25 Work days upon the order confirmed;
