Home Taizhou Jiaojiang Zhiwei Motorbike Manufacture Co., Ltd. Motor Scooter (ZW50QT-8 ( EEC APPROVAL ))

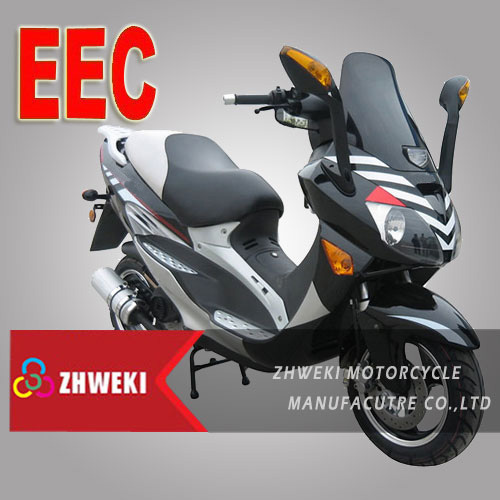

Motor Scooter (ZW50QT-8 ( EEC APPROVAL ))
| Price: | US $ 400-550 |
|---|---|
| Trade Terms: | BY SEA |
| Min Order: | 75/Piece |
Specifications
| Prod Model: | ZW50QT-8 ( EEC APPROVAL ) |
|---|---|
| Markets: | North America,South America,Southeast Asia,Africa,Mid East,Western Europe |
| Fuel Tank Capacity: | 5-8L |
| Maximum Loading Capacity: | 75-120kg |
| Engine: | 4 Stroke |
| Displacement: | ≤50CC |
| Certification: | EEC |
| Max Speed: | 21-50km/h |
Product Description
Motor scooter with EEC, EPA, DOT certificate, main market is for Europe, America, south east aisa, Middle East. South America| Model | ZW50QT-8 |
| Dimension(L*W*H,mm) | 2050 x750x1320 |
| Wheel base(mm) | 1350 |
| Min clearance(mm) | 100 |
| Net weight(kg) | 125 |
| Max load(kg)/Max speed(km/h) | 70 / 60 |
| Consumption(L/100km) | 2.1 |
| Oil tank capacity (L) | 5 |
| Brake(Fr./Rr.) | Disk / Drum |
| Tyre size(Fr./Rr.) | 120/70-12 |
| Wheel Hub(Fr./R.r) | Aluminium |
| Wheel atmosphere(Fr./Rr.)(KPa) | 190/220 |
| Front /Rear suspension | Hydraulic spring / spring |
| Engine model / Type | 139QMB/Single cylinder, four stroke ,air cooled |
| Displacement(ml) / bore x stroke | 49.6cc / 39 x 41.5 |
| Starter/ Ignition system | kick/electrical start / CDI |
| Max power(kw/ r/min) | 2.8/8000 |
| Max torque(N.m/ r/min) | 3.4/6500 |
| Container Loading Quantity | |
| 1¡¢Disassemble front panel,handle bar,rear carrier,front wheel etc. | 1980x570x870mm |
| 20"GP container: | 24pcs |
| 40"HQ container: | 72pcs |
| 2¡¢Disassemble front wheel | 1980x570x1120mm |
| 20"GP container: | 24pcs |
| 40"HQ container: | 48pcs |
