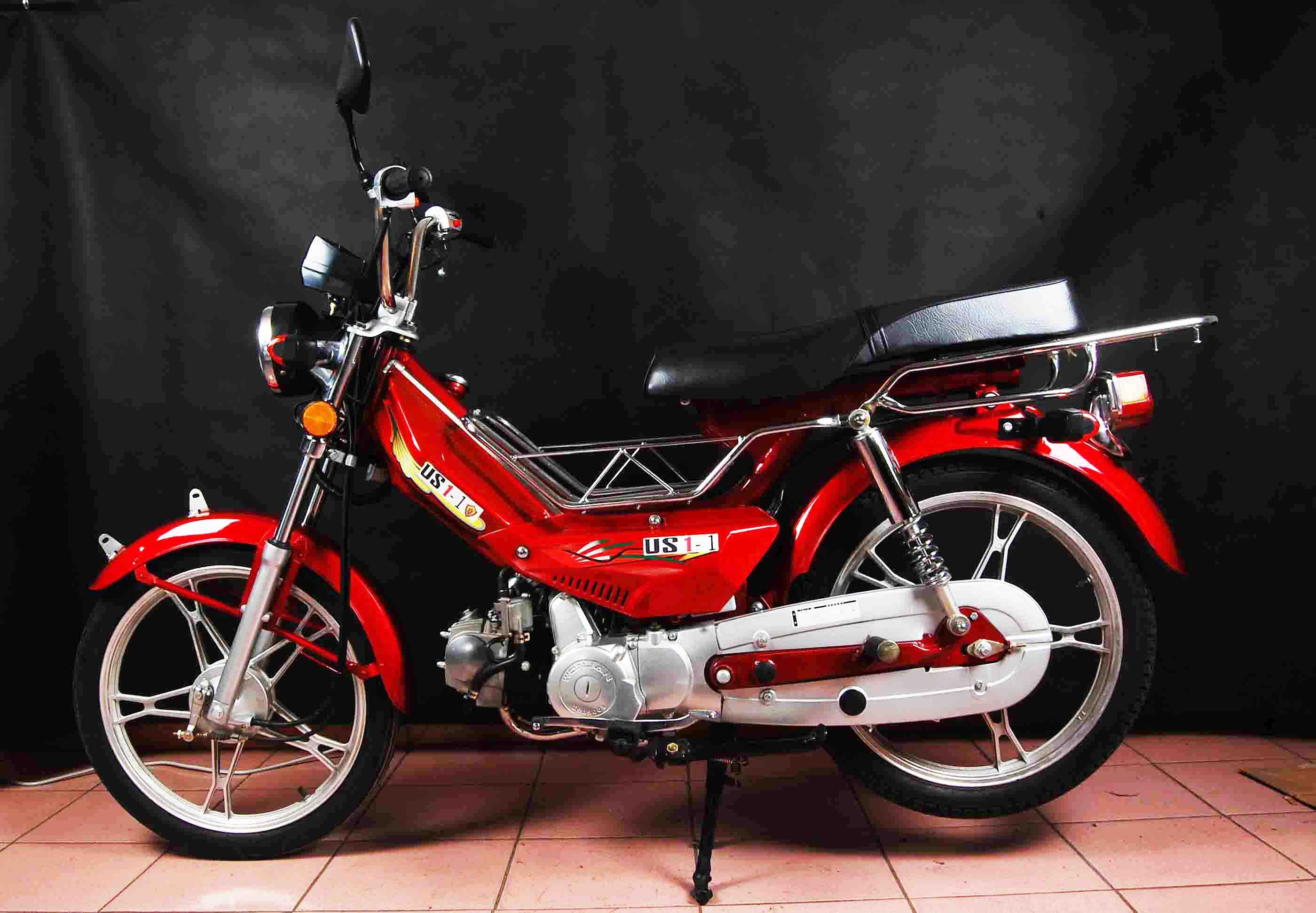

Moped Motorbike with 70CC Engine
| Price: | US $ 300/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 192/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Folded: | Unfolded |
| Fuel Tank Capacity: | <5L |
| Maximum Loading Capacity: | <75kg |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
| Certification: | CE |
| Max Speed: | 21-50km/h |
Product Description
Cub motorcycle/moped motorbike.With big back box can carrer goods.
Max. Speed: 40km/h.
| Engine |
Frame |
||
| engine model | WJ1P47FMD | dimension(L× W× H) | 1795× 730× 1000 |
| cylinder | single | wheel base(mm) | 1180 |
| valve | 4 stroke | dry weight(kg) | 75 |
| cooling | air cooling | max. load(kg) | 75 |
| bore× stroke | 47mm*41.4mm | max. speed(km/h) | 40 |
| displacement | 72ml | clutch type | auto centrifugal |
| starter | kick start | brake(Fr. /Rr. ) | drum/drum |
| ignition | C. D. I | transmission | chain |
| max. power(kw/r/min) | 2.2[7000± 500] | wheel type | spoke wheel |
| max. torque(N. m/r/min) | 3.0[5500± 500] | tyre size | 2.25-17/2.50-17 |
| Package | CBU/SKD | CKD | |
| packing status | Carton with iron bracket | Carton | |
| packing quantity in one 40' HQ | 192 | 205 | |
