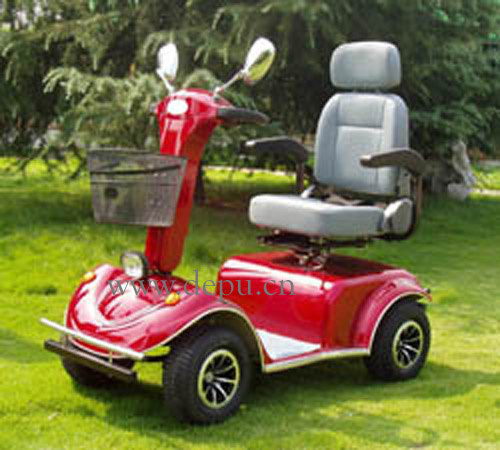

Mobility Scooter / Wheelchair (DP-E011)

Specifications

Prod Model:	DP-E011

Product Description

DP-E011:
Features:
Controller: CURTIS Controller, which is one of the best in the world
Motor: Rear Axle Motor
Battery: Sealed lead-acid maintenance-free battery
It could judge the defect from the sound when you turn on the key.
Dimensions (mm): 1780*680*1200
Ground Clearance: 160mm
N. W.: 120kg(including 2 Batteries: 36kg)
Max. Forward speed: 12km/h
Max. Backward speed: 2. 4-4. 8km/h(Optional)
Climbing capability: 15°
Max. Load capacity: 160kg
Turning radius: 1. 5m
Battery: 12V 38AH×2
Motor: 600W or 750W
G. W.: 135kgs
N. W.: 125kgs
Running distance per charge: 50km
Charger: 110VAC-230VAC (Optional)/24VDC-4A
Charge time: 6-8h
Tire: 13"
Carton size:
1470*800*700mm
640*520*340mm (seat)
Container: 33pcs/20ft 66pcs/40ft
