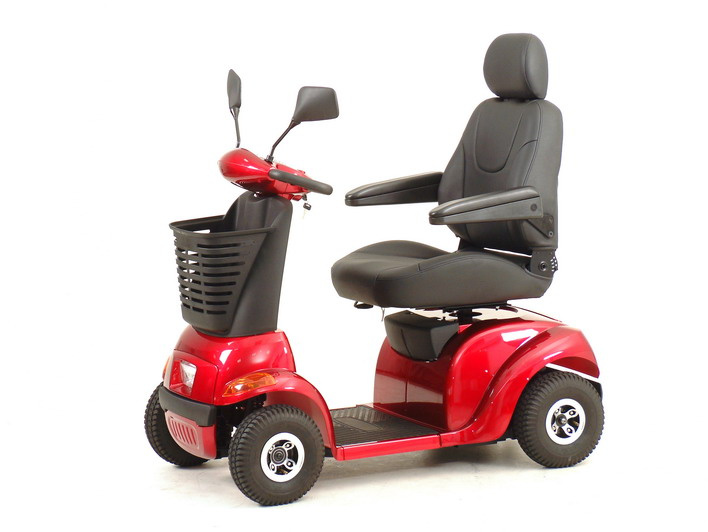

Mobility Scooter DKS500

Specifications

Prod Model:	DKS500

Product Description

Model name: DKS500
Overall height (without seat): 914.4 mm (36")
Overall length: 1092.2 mm (43")
Overall width: 619.8 mm (24.4")
Motor output: DC 24V 500W
Battery 12V× 50AH× 2PCS
Charger: 24V 3AMP (Automatic Type) on-board
Front wheel: 85mm× 260mm pneumatic tire × 2 PCS (3.3"× 10.2")
Rear wheel: 200mm× 335mm pneumatic tire × 2 PCS (8"× 13.2")
Break system: Intelligent regenerative eletromagnetic brake
Net weight (with battery): 86kg (189.6 lbs)
Net weight (without battery): 53.6 kg (118.6 lbs)
Maximum loading: 130 kg (286.6 lbs)
Slope grade ability: 13 degree
Traveling range: 45 km (28.0 miles)
Maximum speed: 10 km/h
Controller: Dynamic
Turning Radius: 1000 mm (39")
Maximum curb height: 70 mm (2.8")
