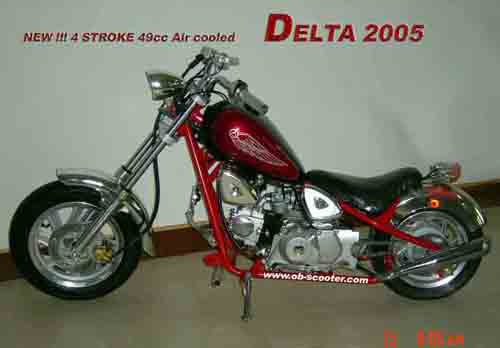

Mini Chopper (OB-Delta 2005)

Specifications

Product Description

1) Engine: 49cc, Single Cylinder, 4-stroke,
2) Idling Current: <=8A
3) Anti-clockwise Current: =>160A
4) Anticlockwise Torque(NM): =>8
5) Maximum Rotation Speed: 10000rpm
6) Charging Voltage(V): 14. 8+/-0. 2
7) Charging Current: <=3A
8) Rotation Speed Of Initial Charge: 5500rpm9) Max. Cap. /rotation Speed: 9/7500km/r/min
10) Cooling System: Air Cooled
11) Starter: Electric And Pull Start (auto- Charge System)
12) Battery: 12V / 7Ah
13) Charge Time: 5 - 8 Hours
14) Recycles: >300times
15) Brake System: Front End Hydraulic Disc; Rear Foot Drum Brake
16) Drive System: Chain
17) Front End Hydraulic Suspension 18) Front Tire: 90/90-12 Tubeless
19) Rear Tire: 130/60-10 Tubeless
20) Wheel Base: 50"(128cm)
21) Ground Clearance: 4. 5" (11. 5cm)22) Fuel System: Gas/High Grade Oil Mix: 25: 1
23) Tank Capacity: 1. 5L
24) Range: 60 - 75km
25) Load Capacity: 150kg
26) Body Material: Steel
27) Product Dimensions:
1750 X 500 X 820mm
28)Packing: Carton Dimensions:
1450 X 405 X 715mm
N.W.: 50kg G.W.: 57kg
65pcs/20ft; 126pcs/40ft HQ
