Specifications
Prod Model: |
GM150GY-13 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine Type: |
4-Stroke |
Displacement: |
126-250CC |
Certification: |
CE |
Fuel: |
Gas / Diesel |
Condition: |
New |
Type: |
Sport Motorcycle |
Product Description
Specifications
Kayak Dirt Bike Motorcycle price
250CC / 200CC/150CC/125CC are available for this motorcycle.

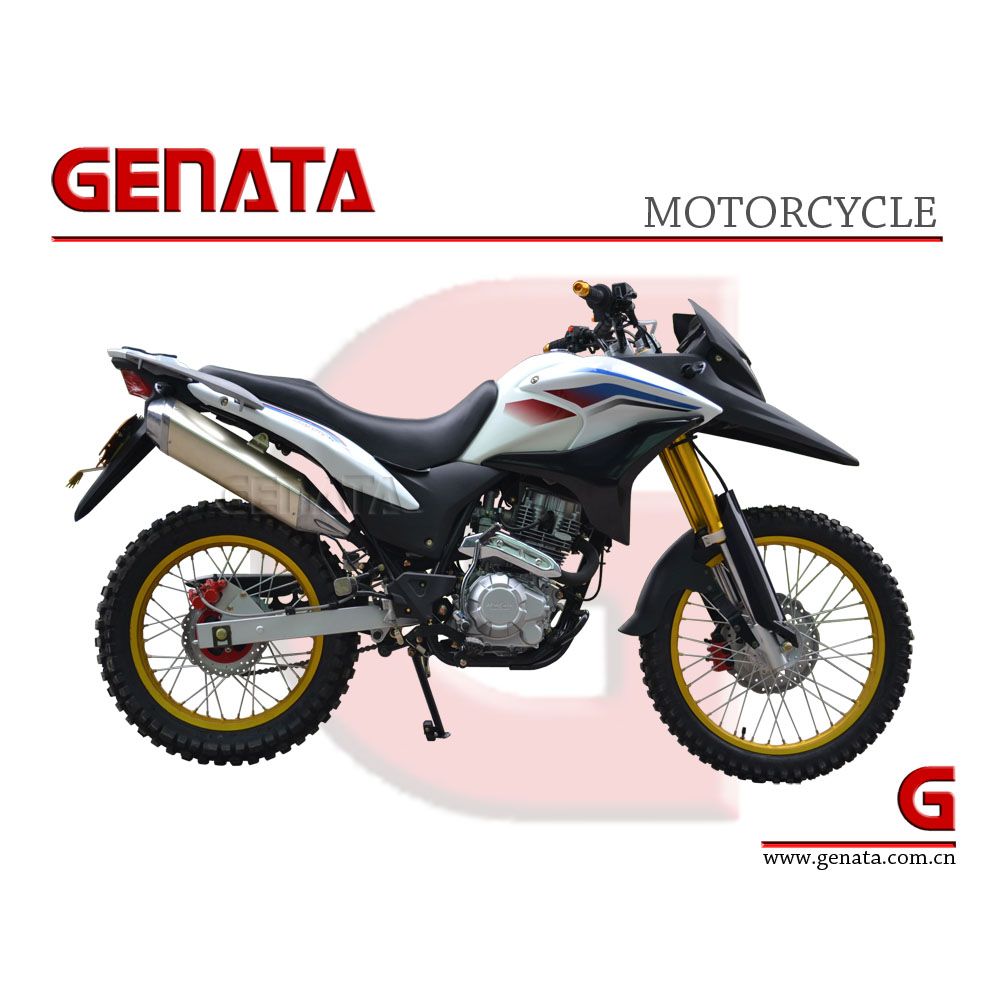

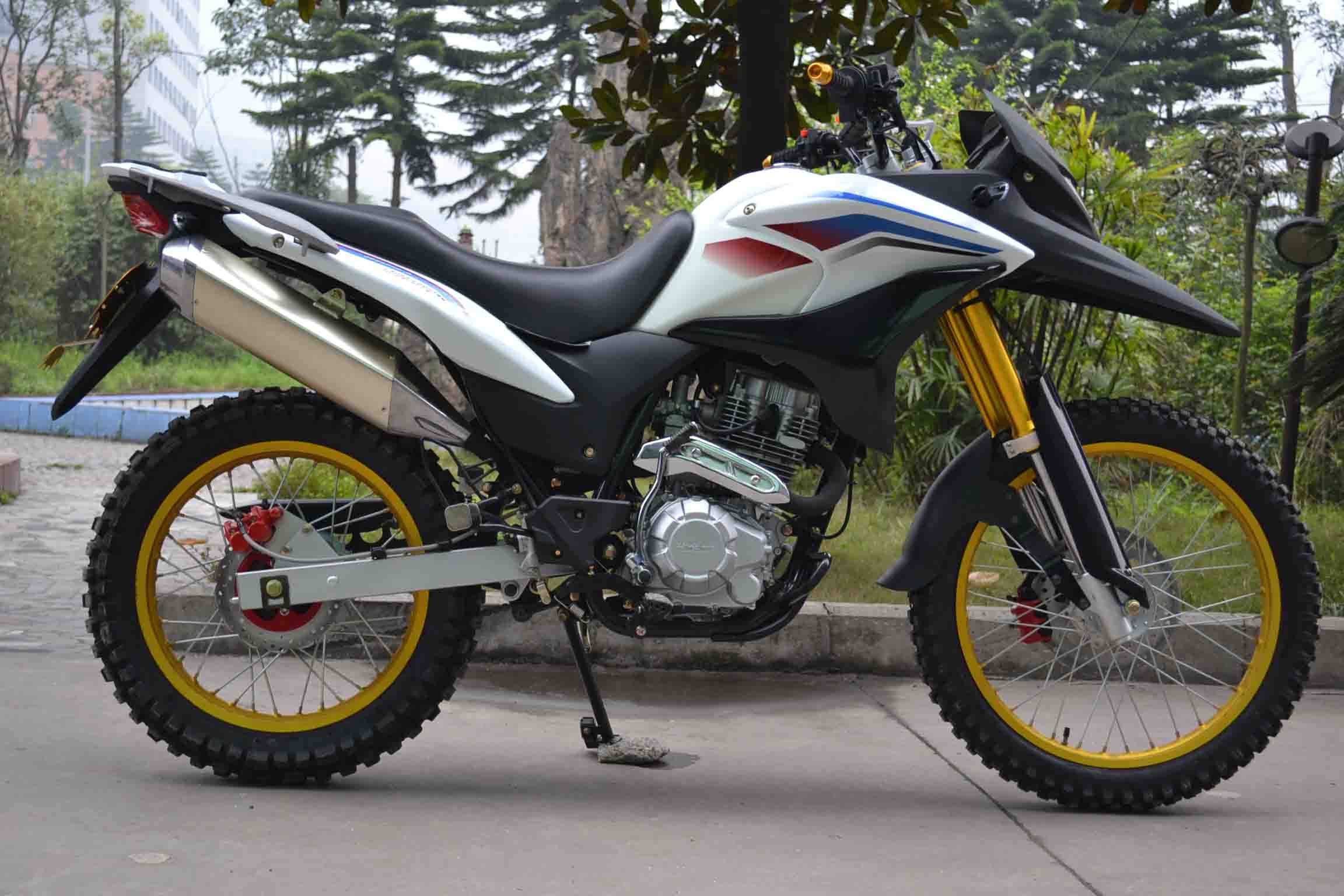

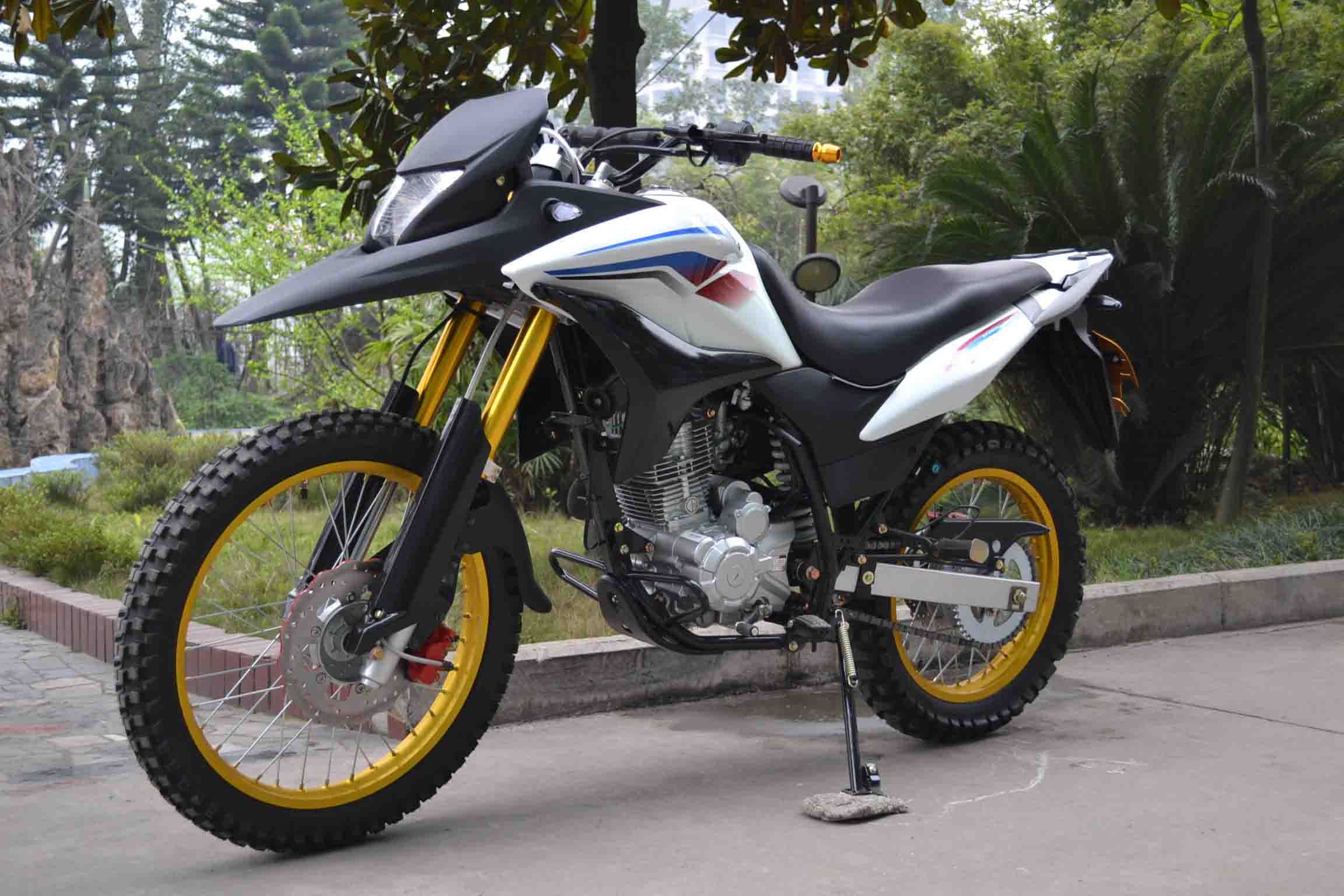

GM150GY-13 Kayak Dirt Bike Motorcycle, 125CC/150CC/200CC/250CC are for option, multiple color are available.
ENGINE |
|
Engine Type : | 150cc, Single Cylinder, 4 Stroke, air-cooling, engine |
Bore X Stroke (Mm) : | 65.5× 66.2 |
Idle speed(r/min) : | 1500 |
Max. Power (Kw/R/Min) : | 12/7500 |
Max. Torque (n.m/r/min) : | 16.5/6000 |
Displacement(ml) : | 150 |
Max. Speed (km/h) : | 1 2 5 |
Min. fuel consume ( g/km.h ) : | ≤ 354 |
Ignition: | CDI |
Starting type : | electric start |
Lubrication : | Pressure splash |
Cooling : | air-cooled |
Battery : | 12V 7AH 12N7-3B |
Compression: | 9.0 : 1 |
BODY |
|
Gear shift : | International 5 gear , Manual Clutch |
Brake(F/R) : | Disc / Drum |
Transmission : | Chain drive |
Minimum turn radius(mm) : | 4500 |
Front/Rear tire : | 90/120-21 / 120/90-18 |
Front/Rear wheel : |
|
DIMENSIONS AND OTHERS |
|
L ×W × H (mm) : | 2200X800X1230 |
Fuel Tank Capacity (L) : | 7L |
Wheel Base(mm) : | 1430 |
Turning Radius (mm) : | 3150 |
Min Ground Clearance (mm) : | 260 |
Loading Capacity(kg) : | 150 |
Climb Ability(°) : | ≥ 20 |
Net Weight (kg) : | 125 |
Gross Weight(kg) : | 150 |
The Maximum Velocity : | 115 km/h |
Seat Height (mm): | 880 |
Carton Size : | 1870 x 580 x 1130 |
Container Loading : | 30pcs/20''GP 62pcs/40''GP 93pccs/40''HQ CKD: 135pcs/40''HQ |
