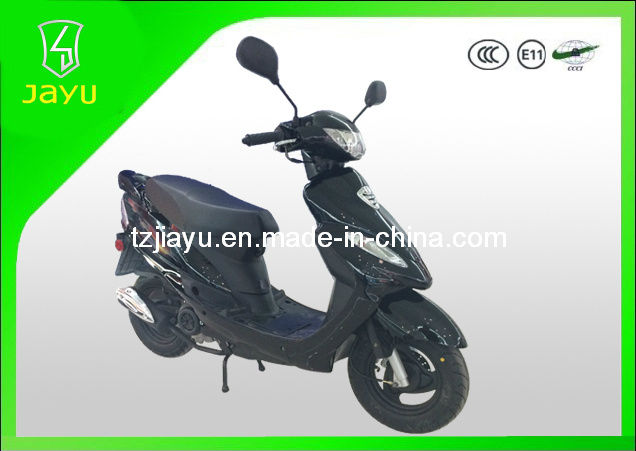

Hot Model 50cc EEC Scooter (Sunny-50)
| Price: | US $ 370/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 32/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | JY50QT-16C |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Red Yellow, White |
| Engine: | 4 Stroke |
| Displacement: | ≤50CC |
| Certification: | COC |
| Fuel Tank Capacity: | 5-8L |
| Folded: | Unfolded |
| Max Speed: | 55km/H |
| Maximum Loading Capacity: | 150kg |
Product Description
Hot model 50cc eec Scooter 1, Selling points: 1, It can match multicolor and stickers 2, We can do 125C power, also do we can do 50CC and 150CC models. 3, Front and rear vacuum tire: durable, fasten, balanced, and beautiful. the tire is wear-resisting and aiti-explosion. 4, Disc brake has high safety performance and has no noise 5, The scooter can install rear box and rear carrier| Scooter body parameter | |
| MODEL | JY50QT-16C (Sunny-50) |
| Dimensions (mm): | 1710 x 650 x 1030 |
| Wheel base (mm): | 1190 |
| Ground clearance (mm): | 100 |
| Dry weight / Load capacity: (kg) | 83 / 150 |
| Max.speed (km/h) : | 55 |
| Economic fuel consuption (1/100km/L) : | 2.1 |
| Exhaust system : | Mute exhaust |
| Fr brake / Rr brake : | disc/drum |
| Fr tyre / Rr tyre : | 3.50-10 |
| Fuel tank capacity (L) : | 4.5 |
| Battery | 12V 4AH |
| Ignition | CDI |
| Front suspension : | hydraulic |
| Rear suspension : | Spring shock absorber |
| Scooter Engine parameter | |
| Engine mode: | 139QMB |
| Engine type | 1-cylinder,air-cooled, 4-stroke |
| Displacement (cc) : | 49.5 |
| Cylinder Diameter / Pinston Stroke | 39 x 41.5 |
| Transmission system : | Belt CVT |
| Compression ratio | 10.3:1 |
| Start system : | kick / electric |
| Standard power(km/r/min): | 2.2/7500 |
| Max. torque(n.m/r/min): | 3.5/4500 |
| Packing information | |
| N.W / G.W (KG)/Packing model | 83 / 90 |
| Packing model | Full export carton package |
| Packing size(mm) /20GP(CBU) | 1680 X 570 X 1180 / 32PCS |
| Packing size(mm) /40HQ(SKD) | 1690 X 460 X 840 / 105PCS |
