Specifications
| Prod Model: | RLG500DZ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Start-up: | Electric |
| Transmission: | Shaft |
| Displacement: | >400CC |
| Certification: | EEC |
Product Description

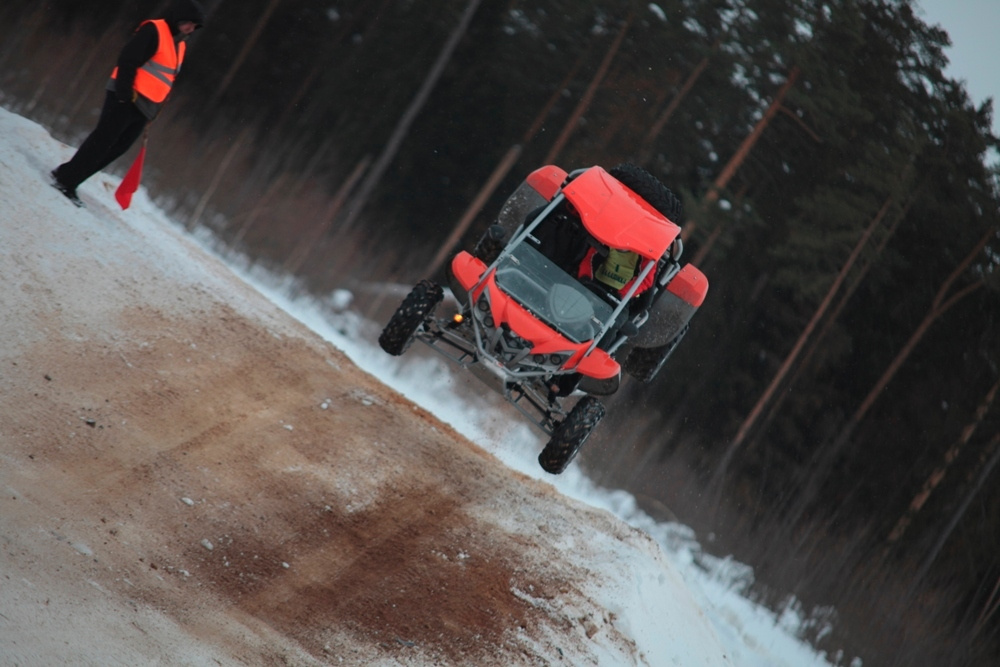

RED GO KARTS 500CC with EECSpec: RLG1-500DZ
Detail:
RLG-500DZ(500CC 4x4 CVT buggy)
EEC: E1*2002/2004*0338*00
DIMENSION AND WEIGHT
Model RLG-500DZ(4 wheel drive)
LxWxH 3000x1660x1510 mm
N. W 398KG
ENGINE
Engine Model 500CC, Single cylinder, 4-stroke, Water-cooled
Automatic With 2 forward gears ( H & L ), parking, and reverse gear, with gear position LCD display
Displacement 493 ml
Fuel #93 UNLEADED
Power max 24 kW/6500rpm (32HP)
Torque max 38.8N@M/5500rpm
Rated speed 1300rpm± 100rpm
Compression Ratio 10.2: 1
Ignition DC-CDI (Direct Current CondenserDiodeIgnite)
Start mode Electric start
Gas tank capacity 20.0L (Liter)
Engine oil capacity 2.2L
PERFORMANCE
Top Speed 90km /h
Lowest Fuel Consumption ≤ 340g/kW. H
Hill Climb 22 °
Max Load capacity 200kg
