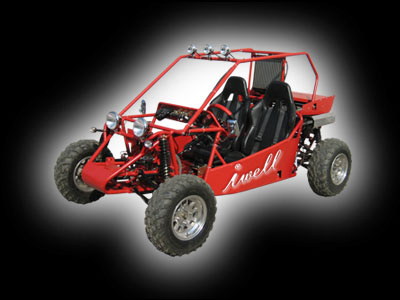

Go Karts (IWELL650GK-1)

Specifications

Prod Model:	IWELL650GK-1

Product Description

SPECIFICATION:

DIMENSIONS
Wheelbase: 2050mm
Wheel tread(F. /R. ): 1360/1350mm
Ground clearance: 280mm

CHASSIS
F. /R. Brake: Hydraulic disc, right foot control
Suspension(F. /R. ): Independent Dual A-Arm
Drive Train: 2WD Shaft
Net weight: 460kg
Max load capacity: 200kg

ENGINE
Type: Dual cylinder, 4-stroke, Liquid-cooling
Efficient capacity: 644ml
Compression ratio: 8.4: 1
Carburetor: BJH101E or CSH101E
Max power: 20.6kw/5300rpm
Maximum torque: 44/2700~3300Nm/r/min

Starting Electrical
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Manual clutch, 4 shift with Reverse gear
Spark plug: F6T or F6TC

Fuel type : RQ93 (unleaded)
Turning radius: 4000mm
Fuel tank: 23L
Engine oil: 2900ml
Coolant: 4000ml
Battery: 12V36Ah
Head Light: 12V 150W/Both
Tail Light: 12V 80W/Both
Fuse: 35A
Brake Track: <7m@20miles/h
Max speed: 50 miles/h (or limited as customer's require)
Conveyance: 8/20' / 16/40' / 24/40HQ
