Specifications
Product Description

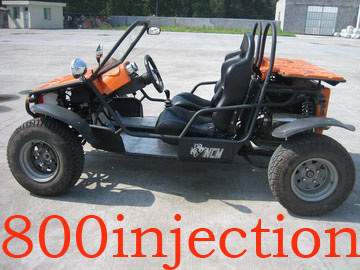

NCKD800 cc injection Specification1)Engine Type:
3-cylinder, 4-stroke, liquid-cooled
Emission meet Euro 3
Brand of the engine: CHERY
2) Transmission System: Manual clutch, 4Shift/Reverse
3) Bore x Stroke: 72 x 66.5mm
4) Piston displacement: 812cc
5) Compression Ratio: 9.5: 1
6) Maximum Power: 21kW/4500RPM
7) Maximum Torque: 70/3500~4000N. M. /rpm
9) Gearing: Shaft drive
10) Product Dimensions: 2770 x 1760 x 1580mm
11) Wheelbase: 2060mm
12) Front Track: 1510mm
13) Rear Track: 1540mm
14) Min. Turning Radius: 4450mm
15) Ground Clearance: 260mm
16) Rider Capacity: 2
17) Brake (front/rear): Hydraulic disc/right foot control
21) Fuel Tank Capacity: 23L
22) Front Suspension: Independent dual A-arm
23) Rear Suspension: Independent dual A-arm
24) Parking Brake: Rear wheel
26) Max. Loading Capacity: 200kg
27) Valve Train: Cam gear Packing.
