Specifications
Prod Model: |
EEC LK500 |
Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission: |
Shaft |
Displacement: |
>400CC |
Certification: |
EEC |
Start-up: |
Cvt |
Product Description

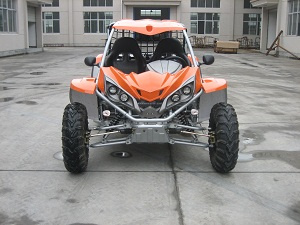

LK500 4x4 or 4x2 EEC APPROVAL
EEC Type-approval No.: E9*2002/24*0292*00
SPECIFICATIONS
Engine: Water cooled, single cylinder, 4-stroke
Displacement: 493ml Rated power: 14.5/7000 kw/rpm
Start mode: electric Maximum torque: 24.5Nm or 5500rpm
Transmission: shaft Bore, stroke: 87.5 x 82mm
Clutch: CVT Front wheel: 25x8-12
Ground clearance: 300mm Rear wheel: 25x10-12
Max. Speed: 80km/h N. W.: 398kg
Ignition: CDI G. W.: 438kg
Wheel base: 2400 mm Dimension: 3035*1685*1465(mm)
Power source: battery 12V 18Ah Packing dimension: 2870*1660*860 (mm)
Brakes: F/R: Hydraulic Disc Container load: 4units/20'GP, 12units/40'HQ
Fuel tank capacity: 20L
Optionals:
Inner review mirror: $6 windshield: $50
Gas aborber: $70 5th wheel: $101 trailer ball $8 on-road tire is available
Color Option: red yellow blue
black orange Green
