Specifications
Prod Model: |
MG-GK1000A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Start-up: |
Electric |
Transmission: |
Shaft |
Displacement: |
>400CC |
Certification: |
EEC |
Product Description
We supply diferet models of go kart with high quality and reasonable price. Please ask us for detailed info and quotation. Thanks! Go Kart: 400CC, 580CC, 650CC, 800CC, 1000CC.

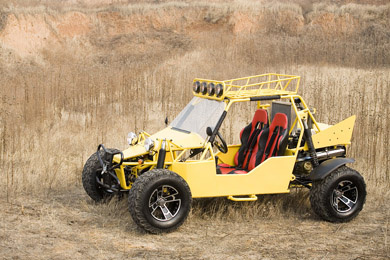

Model name: MG-GK1000A
Engine type: LJ465Q-1ANE1/1.1L
Displacement: 970CC
Bore X stroke: 65.5x78mm(2.6x3.1in)
Compression ratio: 8.8: 1
Ignition: EFI-DELPHI
Cooling system: Water-cooled
Starting system: Electric
Vehicle dimension(LxWxH): 3160x1900x1680mm(124.4x74.8x66.1in)
Wheelbase: 2340mm(92.2in)
Front tread: 1530mm(60.2in)
Rear tread: 1620mm(63.8in)
Ground clearance: 320mm(12.6in)
Seat height: 580mm(22.8in)
Dry weight: 620kgs(1362.6lbs)
Fuel capacity: 36L(9.36gal)
Payload capability: 280kgs(616.7lbs)
Towing capability: 3776N(850lbf/385kgf)
Final Drive: Shaft, 2wd
Brake system front/rear: Disk/Disk
Suspension, front: Rear axle
Suspension, rear: Independent A-Arms
Steering: Rack&pinion
Front tyre size: 28x10-14
Front wheel size: 14x8
Rear tyre size: 28x12-14
Rear wheel size: 14x10
Top speed: 85km/h(53MPH)
Loading information: 2 units/20"; 8 units/40"; 16 units/40HQ
Packing Size: 2980x1160x1250mm(117.3x45.7x49.2in)
