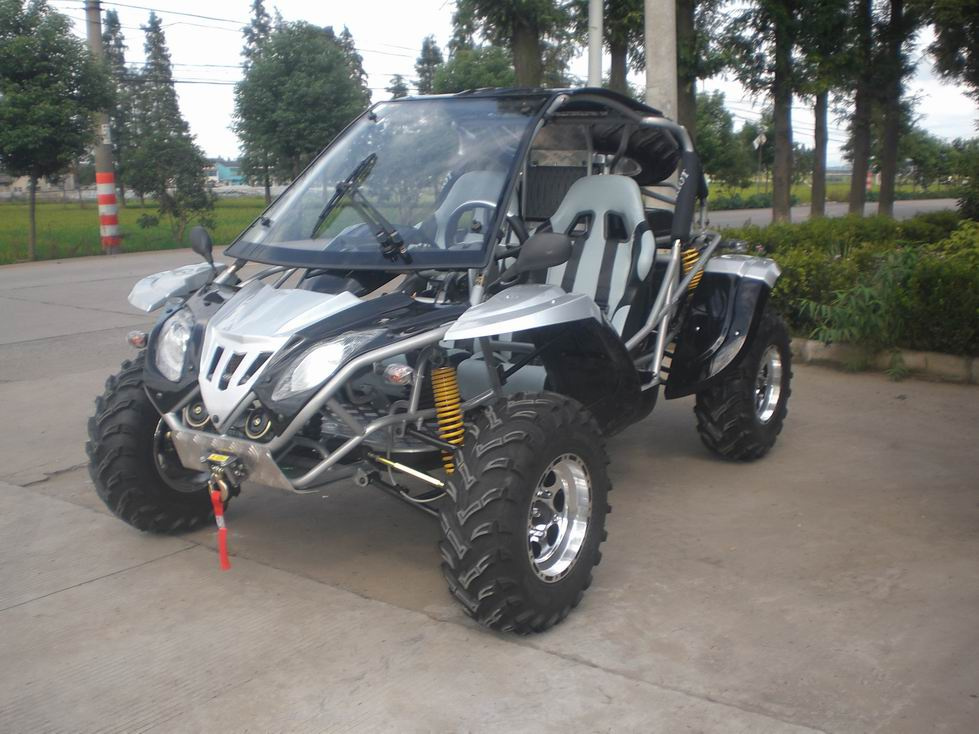

Go Kart 500CC (GK500-EC)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1 /Piece |
| Pay Type: | T/T,Western Union |
Specifications
| Prod Model: | GK500-EC |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Speed: | 60-90 km/h |
| Start-up: | Electric |
| Transmission: | Shaft |
| Displacement: | >400CC |
| Certification: | EEC |
Product Description
Engine type: Single Cylinder, 4-stroke, water-cooled, 4-valve, CVT, R/N/L/HDisplacement: 493CC
Product dimension: 2600*1600*1450mm
Tires (front / rear): 25 x 8-12 / 25 x 10-12
Qty/20FT: 8units (take down the rear suspension)
Qty/20FT: 4units ( Don't take down the rear suspension)
Qty/40HQ: 21units
Optional spare parts:
1)Winch; 2)Spare tyre; 3)Top Roof
4)Aluminum rims; 5)Windshield; 6)Wiper assembly
| 1) | Engine type | Single Cylinder, 4-stroke, water-cooled, 4-valve, CVT, R/N/L/H |
| 2) | Displacement | 493cc |
| 3) | Max Torque | 38.8N. M/5500r/min (Europe standard: 30N. M/4500r/min) |
| 4) | Max Power | 24kw/6500r/min (Europe standard: < 15kw/6500r/min) |
| 5) | Compression ration | 10.2: 1 |
| 6) | Ignition system | CDI |
| 7) | Oil capacity | 30L |
| 8) | Economical oil exhaust | 5.8L/100km |
| 9) | Max speed | 80km/h (Europe standard: 75km/h) |
| 10) | Starter system | Electric/ Hand |
| 11) | Transmission | Dual independent shaft drive |
| 12) | Brake Type | disc brake / disc brake |
| 13) | Wheelbase | 1930mm |
| 14) | Ground clearance | 340mm |
| 15) | Tires (front / rear) | 25 x 8-12 / 25 x 10-12 |
| 16) | N. W. | 423kgs |
| 17) | G. W. | 513kgs |
| 18) | Product dimension | 2600*1600*1450mm |
| 19) | Carton dimension | 2550*1320*830mm |
