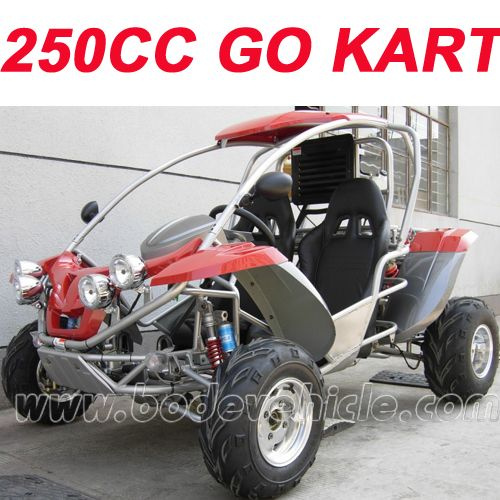

Go Kart 250CC (MC-440)

Specifications

Prod Model:	MC-440
Markets:	Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Start-up:	Electric
Transmission:	Chain
Displacement:	400CC
Certification:	CE

Product Description

250CC go kart
Go kart with 4 stroke
250CC go kart with CE
250CC go kart with Rrear Disc Brakes
250CC go kart with 2 seats

The 2011 power go kart is here and faster than ever!
This ultimate go kart is the largest
Framed 250CC two seater liquid cooled
Buggy available
Available in many colours
Alloy wheels as standard

4 stroke engine air cooled
Shaft drive with differential
Automatic with reverse
Disc brakes
Independent suspension
Item No. Mc-440

1) Product dimensions: 2, 430 x 1, 565 x 1, 565mm
2) Wheelbase: 1, 650mm
3) Fuse: 15A
4) Engine type: Single cylinder water-cooled, 4-stroke, 250CC
5) Corrected compress ratio: 10: 1
6) Cylinder size: 72 x 60mm
7) Carburetor: DPR7EA-9 (NGK) D7RTC
8) Output power: 11kW/7, 000rpm
9) Max. Torque: 17.6N. M/5, 500rpm
10) Start mode: Electric
11) Ignition: CDI:
12) Lubrication: Force and splash
13) Transmission: Chain
14) Spark plug: C7HSA (NGK)
15) Plug gap: 0.6-0.7mm
16) Fuel brand: RQ-90 (leadless)
17) Lubricate oil brand: SAE10W-30
18) Load capacity: 1 rider or 90kg
19) Fuel tank: 9.0L
20) Engine oil capacity: 1.0L
21) Starting: ≤ 15s
22) Climbing degree: 12
23) Battery: 12V, 6.5Ah
24) Head light: 12V 55W
25) Tail light: 12V LCD
26) Front brake: Hydraulic disc / left foot control
27) Rear brake: Hydraulic disc / left foot control
28) Front tire: 175/70-10
29) Rear tire: 255/60-10
30) Front suspension: Dual A-arm with 70mm of travel
31) Rear suspension: Spring over shock with 90mm of travel
32) Top speed: 30km/h (or limited as per customers' requirements)
33) Dry weight: 310kg
34) Tire pressure:
A) Front: 175KPa
B) Rear: 200KPa
35) Min. Turning radius: 7m
36) Parking trig: Mechanical lock
37) Seat distance: 500mm

Outer packing:
Carton dimensions: 2, 300 x 1, 460 x 880mm
Conveyance:
Qty/20' FCL: 8PCS
Qty/40' HQ: 24PCS
