Specifications
| Prod Model: | TY-6250DBL |
|---|---|
| CARB: | CE |
| Start-up: | Electric |
| Transmission: | Chain |
| Displacement: | 250CC |
| Certification: | EPA |
Product Description

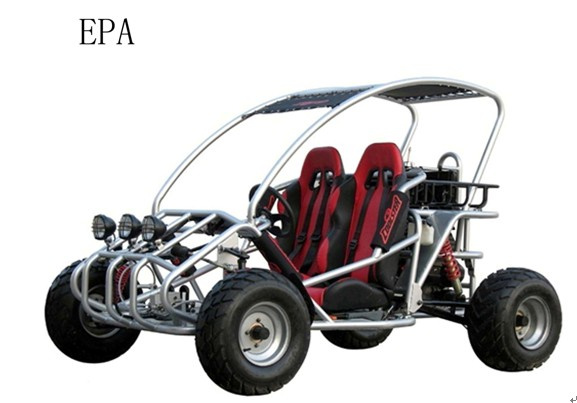

GO CART TY-6250DBL| Specifications | |
|---|---|
| Model Number | GK-6250DBL |
| ENGINE INFO | |
| Engine type | 250cc water- cooled and CVT system |
| Displacement | 250cc, |
| Cooling | Forced air-cooled, |
| Max horsepower | 11kW / 7,000r/min |
| Max torque | 17.6N.m / 5,500rpm |
| Bore*stroke | 72x60mm |
| Max speed | 68km/h |
| Climbing ability | |
| Ignition | CDI |
| Starting system | Electric start |
| Battery | 12V, 9Ah |
| Engine oil | 0.9L |
| CHASSIS ETC | |
| Clutch | Auto clutch |
| Transmission | |
| Driveline | Shaft drive |
| Driving wheel | |
| Suspension,front/rear | Four-wheel independent suspension |
| Brakes | Foot brake |
| Brake operation | |
| Tires,front/rear | 22 x 7.00-10 /23 x 14.60-8.3 |
| Fuel capacity/type | 10L |
| Weight,G.W./N.W | 430kg /340kg |
| Max load | 150kg |
| DIMENSIONS | |
| Wheelbase | 1735mm |
| L*W*H | 2355mmx1650mmx1550mm |
| Height to seat | 350mm |
| Min ground clearance | 170mm |
| Carton size | 2310mm x 1470mm x 850mm |
| Shipping info | Qty/40' HQ: 24pcs |
