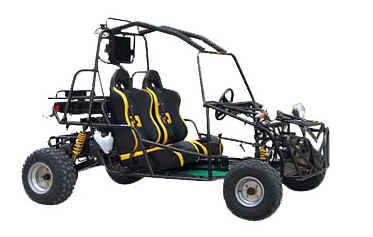

Go Cart (SJGT-C40)

Specifications

Prod Model:	SJGT-C40

Product Description

Item NO.: SJGT-C40
Description: Go cart

Details:
1) Engine:
A) Displacement: 244cc
B) Cooling: Liquid cooled
C) Engine Type: Single, 4-stroke
D) Max Power: 12.5kw/7500rpm
E) Max Torque: 17.6 N. M/5500 rpm
F) Lubrication: Oil injection
G) Oil Capacity: 1.0L in crankcase. 0.18 L in gearcase
H) Carburetor: 22mm-VE Mikuni
I) Fuel Capacity: 16 L with fuel indication
J) Coolant Capacity: 1.8 L in radiator. 0.42 L in reserve case
K) Starting: Electric
L) Alternator: 160watts

2) Drive System:
A) Transmission: Automatic CVT, with reverse
B) Engine speed ratio: 17.82-7.29
C) Drive: Rear 2-wheel drive
D) Wheelbase: 1960mm
E) Turning Radius: 5m
F) Dry Weight: 330kg
G) Product dimensions: 2600 x 1600 x 1600mm

3) Suspension:
A) Front suspension: Double A-arm strut with 80 mm travel
B) Rear suspension: Single swing arm strut with 100 mm travel

4) Brake:
A) Front brake: Hydraulic disc
B) Rear brake: Hydraulic disc

5) Parking: Mechanical lock
6) Rear 2-wheel
7) Tires:
A) Front tires: AT19 7-8 (6 psi)
B) Rear tires: AT22 0-10 (8 psi)
8) Load capacity: 200kg
9) Electrical:
A) Brake light: Standard
B) Handlebar headlight: 2 days beam high/low 35/20 watts

Packing: Carton dimensions: 2300 x 1450 x 760mm.
