Home Wuxi Yingkesong Import & Export Trading Co., Ltd. Gas Engine Power Turtle Scooter Motorized 50cc

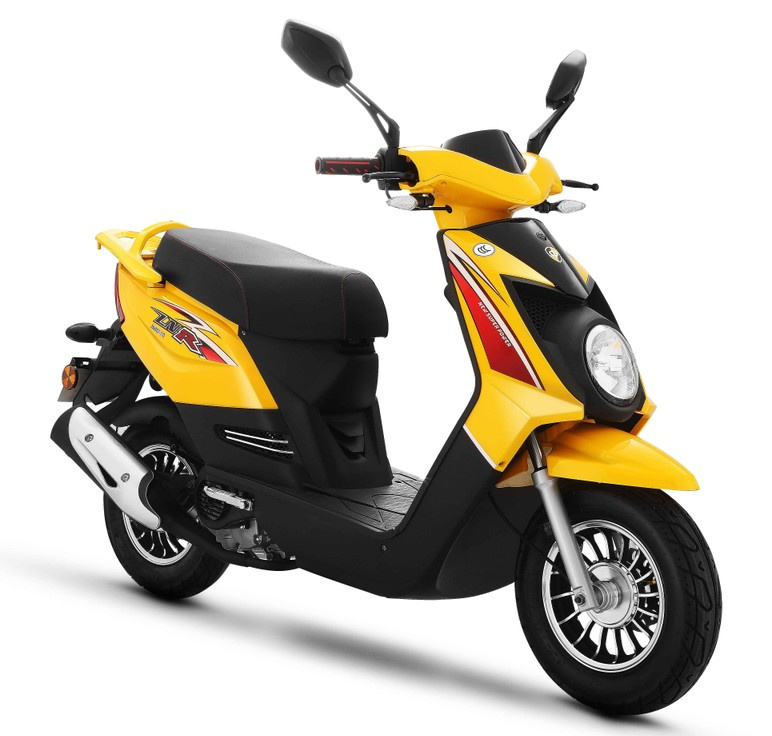

Gas Engine Power Turtle Scooter Motorized 50cc

Gas Engine Power Turtle Scooter Motorized 50cc
Price: US $ 670/Piece
Trade Terms: CIF
Min Order: 1/Piece
Pay Type: T/T

Specifications

Prod Model: LS0066
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
L*W*H: 1860*870*1080
Wheelbase Mm Mm: 1300
Max Load Kg: 75
Front Rear Wheel: 3.50-10
Certification: EPA
Fuel Tank Capacity: <5L
Folded: Unfolded
Max Speed: 50-85km/H
Displacement: 50-150cc
Engine: 2-Stroke,4-Stroke
Maximum Loading Capacity: 75kg

Product Description

Gas Engine Power Turtle Scooter Motorized 50cc

Characteristic:


vehicle size length×width×height1860*870*1080 Front wheel3.50-10
SKD Size1840*570*870


CBU1980*760*1210


Wheelbase   mm         mm1300Rear wheel3.50-10
Ground mm   mm95Front tyre kPa180
Curb weight kg93Rear tyre kPa200
Max load kg75Gearbox typeAuto CVT
Operation angle of rotation º≤48Transmission ratio9.39~26.52
Initial speed V=60km/hFront brake distance mRear brake distance mRear brake distance mRear brake everage m/s2
≤21.78≥3.4≤26.86≥2.7
Maximum speed km/h≤50Engine model139QMA-JSingle/4stroke,air-cooling -forced
Economic fuel≤2.3bore×stroke mm39.0×41.5
Climbing  º≥4.5Work volume ml49.6
Gradient of low beam-1.30%Battery12V  7Ah
Way of startingKick/ electricFuel tank L5L
Lubricating styleOil PumpFuse15 A
Rated Power2.2/7000Headlight12V 35W/35W
Max Torque N.m/r/min3.0/6000Tail light/Brake light12V 5W
Rated Power10.5:1Direction light12V 5W/21W
Specification of Spark PlugC7HSA(NGK) or A7T,A7RTTurning light12V 10W×4
Spark Plug Gap mm   mm0.6~0.7Fuel BrandAbove RQ90
Idling Speed    r/min(1500±150)Oil capacity of gear box L0.11
Lubrication Capacity of Crankshaft Case   L 0.8Gear Oil BrandSAE 80W/90
Lubrication brandSF grade SAE 15W/40(crankcase)Valve clearance mm0.03~0.05
Ignition ModelCDIClutch modelCentrifugal
SKD: 24UNITS/20GP   / 50UNITS/40FT /   75UNITS/40HQ
CBU: 8UNITS/20GP   36UNITS/40HQ   18UNITS/40FT
