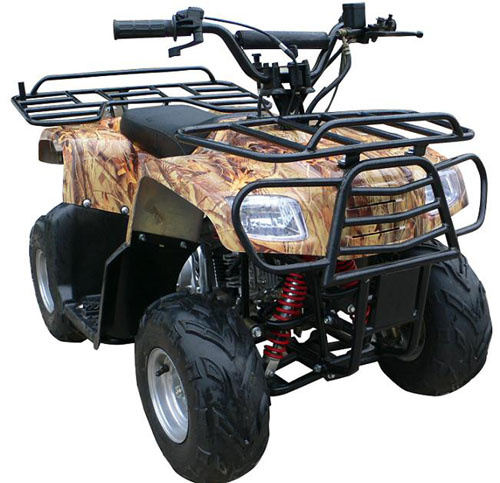

Home Yongkang Bosslong Industrial & Trading Co., Ltd Gas ATV (BL-220)
Specifications
| Prod Model: | BL-220 |
|---|
Product Description
Specification1) Displacement: 50cc/90cc/110cc
2) Wheelbase: 750
3) Wheel track(mm) Front: 515 Rear: 570
4) Seat height: >560
5) Minimum ground clearance: >80
6) Mode of suspension: Front: Double swing arm: Independent suspension
7) Transmission: Chain
8) Tire: Front: 145/70-6, rear: 145/70-6
9) Battery: 12V-5A. H
10) Weight: 79
11) Maximum load 75kg
12) Fuel tank: 2L
13) Maximum speed: 40km/h
14) Turning radius(mm): 2100
15) Engine: Single cylinder four stroke air cooled starting engine above
16) Starting mode: Electric starting
17) Gear: AUTOMATIC
18) Clutch: Automaticmaximum power(kw/rpm): 2.3kw/7000rpm
19) Max torque: 3.On. M/5500-6500rpm
20) Bore*stroke: 39.0*41.4
21) Ignition: C.D.I
22) Fuel: >93#
23) Lubrication: Press and splash
24) Lubrication capacity: 0.9L
25) Length x Width x Height: 1230*710*830
26) Container: 40HQ/120PCS
