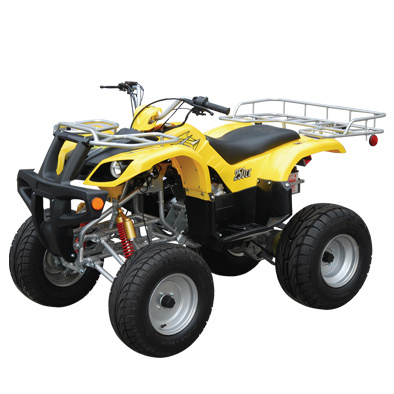

Full Size 250cc ATV (ATV33)

Specifications

Prod Model:	ATV33

Product Description

Engine: 250CC, Single cylinder, air cooling, 4 stroke
LxWxH(mm): 1765x1050x1130
Wheel base: 1115mm
Seat height(mm): 850mm
Ground clearance(mm): 125mm
Brake: Drum(F) disc(R)
Transmission system: Chain
Tire: 19x7-8(F) 18x9.50-8(R)
Load(kg): 150kg
Fuel tank capacity(gallon)(L): 4.3L
Maximum speed(km/h): 70km/h
Starter system: Electric starter
Maximum power(Kw/rpm): 12kw/7500rpm
Maximum torque(Nm/rpm): 17nm/6000rpm
N. W. /G. W.: 155kg/180kg
Carton size: 1500x830x870mm
Container: 20pcs/20'Qty 42pcs/40'Qty 63pcs/40'HQ
