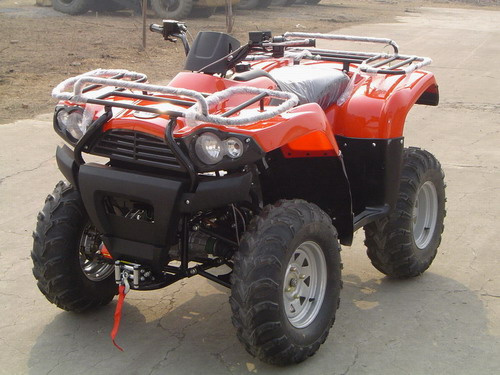

FLZ500CC ATV

FLZ500CC ATV
Price: Negotiable
Min Order: 1

Specifications

Prod Model: ATV0001

Product Description

Overall Dimension(LxWxH) 1970x1170x1190mm
Distance between axles 1250mm
Distance between front wheels 960mm
Distance between rear wheels 870mm
Ground clearance 240mm
Proper Mass of Empty vehicle 313kg
Max speed ≥65km/h
Climbing Ability ≥25
Specification of Front wheel 25x8-12
Specification of rear wheel 25x12-12
Type of engine CF188
Specification of engine 4-stroke, single cylinder, water cooling
Lubricate Pressure spray
Cylinder bore x stroke 87. 5mm x 82mm
Efficient Capacity 493cm3
Rated Power and Rotate Speed 24KW/6000r/min
Max Torgue and Rotate Speed 38. 8N. M/5500r/min
Compressing Ratio 10. 2: 1
Type of Ignition CDI
Type of Spark plug DPR7EA-9(NGK)
Transmission model Automatic, high and low speed, neural and reverse
Starting system Electric start/ hand pull
Cooling system shut cooling, fluid cooling
Cooling fluid type Antirust,
