Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Folded: |
Unfolded |
Engine: |
4 Stroke |
Certification: |
EEC |
Fuel Tank Capacity: |
6.6L |
Maximum Loading Capacity: |
150Kg |
Displacement: |
125cc/ 150cc/ 170cc |
Max Speed: |
upon request |

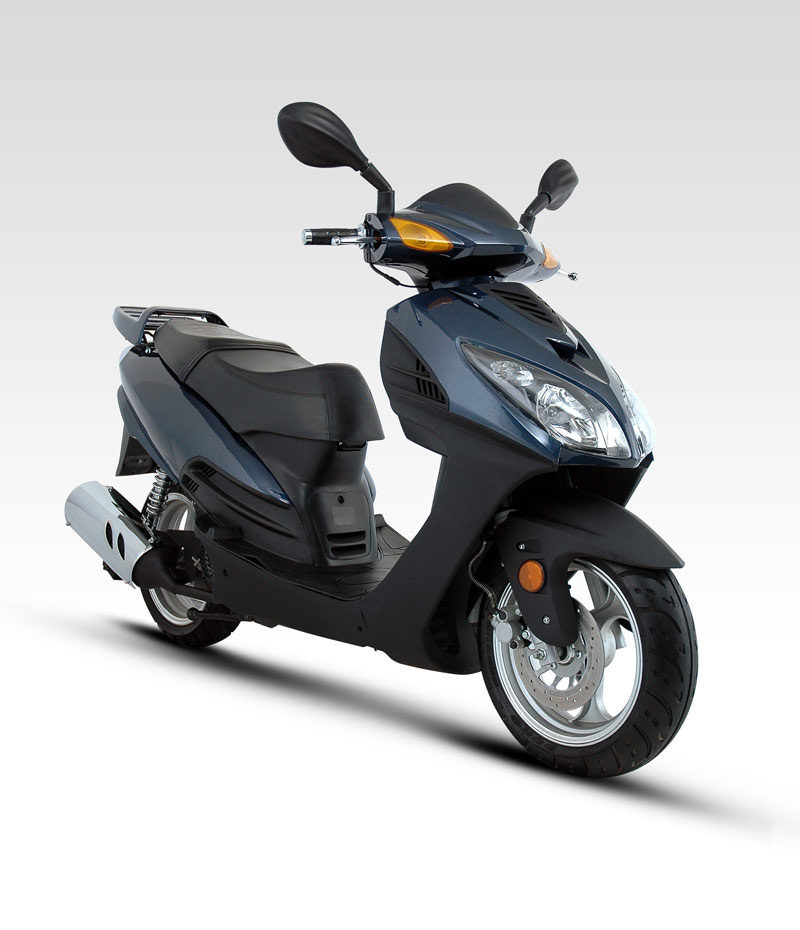

Product Description
Engine types: 4-stroke, single cylinder, forced air-cooled
Valve train: 2 valves and SOHC
Bore x-stroke: 52.4 x 57.8, 57.4 x 57.8 and 61.0 x 57.8mm
Displacement: 124.6, 149.6 and 168.9CC
Compression ratio: 9.2: 1, 10.3: 1 and 9.2: 1
Ignition system: CDI
Starter: Electric or kick start
Maximum power: 6.8/8, 000, 8.0/8, 000 and 7.1kW/7000rpm
Maximum torque: 8.6/6, 000, 10.1/6000 and 10.2Nm/5000rpm
Gearbox: CVT
Suspension:
Front: Oil damped telescopic fork
Rear: Oil damped coil spring
Tire:
Front: 130 or 13 to 60 inches
Rear: 130 or 13 to 60 inches
Brake:
Front: Disc
Rear: Drum
Wheelbase: 1, 370mm
Engine oil capacity: 1L
Fuel tank capacity: 6.6L
Maximum loading capacity: 150kg
Dimensions: 1, 950 x 700 x 1, 072mm
Dry weight: 110, 115 and 117kg
Packing: SKD dimensions: 1, 970 x 570 x 870mm
Loading quantity:
SKD:
20ft container: 22 units
40ft container: 48 units
40ft HQ container: 72 units
