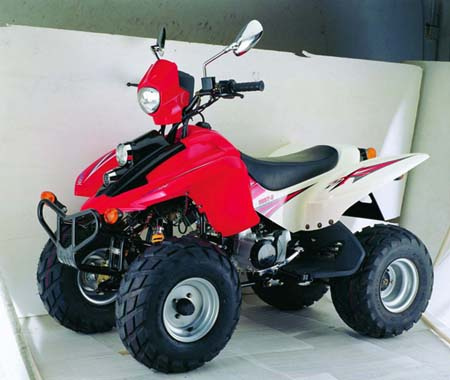

Home Fastran Industry Co., Ltd. F50cc EEC ATV(R50ST-5)
Specifications
| Prod Model: | FR50ST-5 |
|---|
Product Description
Fr. Drum brake, Re. Disc brake, alloy wheel, air cooled 50cc engine, 4-stroke, with reverse gear, lamps fitted, safe guard, with front and rear rackLoading quantity: 27units/20FCL; 63units/40FCL
Carton size: L*W*H:1510*830*780mm
Wheel base (mm):900
Min.Ground Clearance (mm):130
Dry Weght: 110kg
Engine Type:Single-cylinder,air-cooled,four-stroke,Reverse
Engine model: 1P39FMB
Bore*Stroke: 39mm*41.4mm
Displacement: 49ml
Maximum Power:2.0kw/7500r/min
Maximum Torque: 2.5N.m/5000r/min
Fr. Brake: drum brake
Rr. brake: disc brake
Clutch: Wet multi-plate
Lubrication: Pressure/splash
Start: Electric start/Kick start
Ignition: C.D.I
Max. Speed (km/h): MIN 40km/h
Front Type Size and Air Pressure: 16*8-7
Rear Type Size and Air Pressure: 16*8-7
