Specifications
Product Description

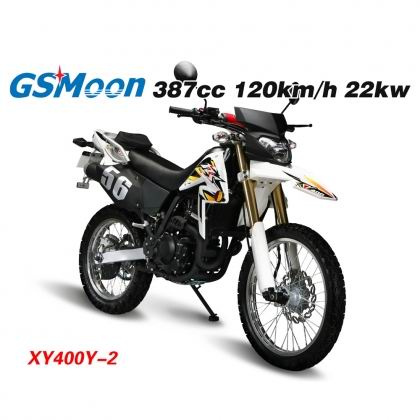

Model: XY400Y-2
Special value
Production size(mm) 2155 * 880 * 1218
Wheelbase (mm) 1400
Ground clearance(RAM) 300
Max, speed (Km/h) 120
Fuel capacity(L) 9.0
Seat height(mm) 880
Staffed system electric
Tire size 3.00-21/4.60-18
Wheel type light alloy/light alloy
Brake mode Disc brake/Disc brake
Brake operation mode Hand/Foot
Engine slyle Single cylinder, water-cooled, 4 stroke, gasoline machine
Rated displacement(CC) 387CC
Max, output power(Kw/rpm) 22kw/7000rpm
Bore * stroke(mm) 91 * 59.5
Ignition C. D. I.
Transmission type Chain trasmission
N. W. 145kg
G. W. 180kg
Optional installation alarm
Carton size and quantities 1820 * 490 * 1120mm/6Opcs/40`GP
