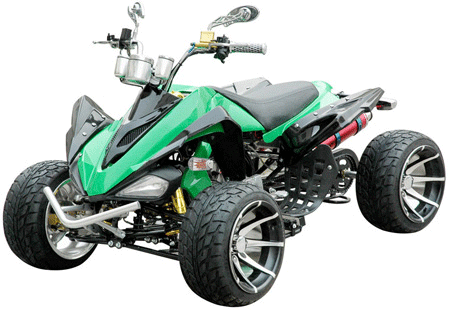

EPA ATV (WJ110ST-11)

Specifications

Prod Model:	WJ110ST-11

Product Description

engine type: 48CC/ 72CC/ 86CC/96CC/ 107CC /124CC
2. max torque: 4.2Nm/5000rpm, 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
3. max power: 3.0Kw/8500rpm/, 3.0kw/7500rpm, 3.3kw/7500rpm, 3.6kw/7500rpm,
4. ignition type: CDI
5. transmission: 4-speed, semi-automatic reverse
6. Brake (Front/Rear): Disc/Disc
7. starting system: Electric start
8. battery spec: 12V, 9AH
9. front suspension details: double A x swing arm
10. rear suspension details: mono shock swing arm
11. front tire spec: 235/30-12. rear tires spec: 235/30-12.
12. vehicle dimensions: 190x110x103cm
13. wheel base: 1300mm
14. seat height from ground: 63cm
15. ground clearance: 80mm
16. load capacity: 150kg
17. fuel tank capacity: 5L
18. gross weight in carton: 160kg
19. net weight: 140kg
20. packing size: 155x83x71cm
Conveyance:
33pcs/20ft 66pcs/40ft
66pcs/40'HQ
