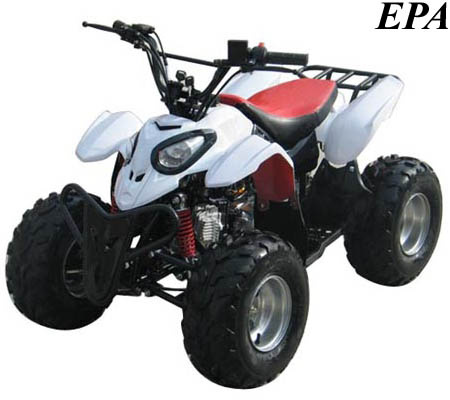

EPA ATV with 50cc, 70cc, 110cc Engine (EPA-ATV03)

Specifications

Prod Model:	EPA-ATV03

Product Description

EPA ATV with 50cc, 70cc, 110cc Engine (EPA-ATV03)
1) Engine type: 50cc, 70cc, 110cc, single cylinder, 4-stroke, air-cooled
2) Starting system: electric
3) Maximum power: 4. 0kW/7, 500-8000r/min
4) Maximum speed: 40km/h
5) Ground clearance: 120
6) Transmission system: chain
7) Braking method: Front, drum; rear disc
8) Climbing ability: 17
9) Tyre size: front: 16/8-7; rear: 16/8-7
10) Cylinder bore stroke: 47 x 49. 5mm
11) Displacement: 90ml
12) Seat height: 590mm
13) Min. turing radius: 2100mm
14) Max. loading: 75kg
15) Fuel: 93# mix of gasoline & oil
16) Rider capacity: 1
17) Methods of lubrication: oil mist
18) displacement: single cylinder
19) Wheelbase: 830mm
20)clutch: automatic
21) Product dimensions: 1360 x 820 x 860mm
22) N. W: 87kgs, G. W: 97kgs
