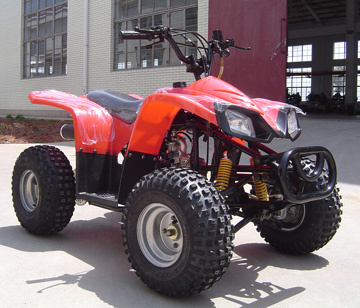

EPA Approved ATV (YA110-A4)

Specifications

Product Description

Engine Type: 4-Strokes, Air Cooled
Cylinder Arrangement: Single Cylinder
Transmission System: Chain drive
Bore x Stroke (mm): 52. 4 x 49. 5
Piston Displacement (CC): 107
Compression Ratio: 9. 1: 1
Maximum Power (kw/r/min): 5. 5/8000
Maximum Torque (N. m. /rpm): 6. 5/5750
Starter System: Electric Starter
Lubrication: Auto
Transmission: fully Automatic
Overall Length (mm): 1540
Overall Width (mm): 860
Overall Hight (mm): 950
Wheel Base (mm): 1040
Seat Hight (mm): 670
Min. Turning Radius (mm): 2400
Ground Clearance (mm): 100
Rider Capacity: 1 Person
Dry Weight (kg): 130
Brake (Front/Rear): Drum/Disc
Tyre, Front: 19x7-8/2. 9Psi
Tyre, Rear: 18x9. 5-8/2. 9psi
Ignition Type: C. D. I.
Fuel Tank Capacity (L): 7. 8
Engine Oil Capacity (L): 0. 95
Gear Oil Capacity (L): 0. 12
Front Suspension: Leading Arm
Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Max. Load Capacity (kg): 95
Max. Speed: 50
Battery: 12V-9Ah
