Specifications
Prod Model: |
DMU800-04 |
Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East |
Valve Configurations: |
8-Valve |
Engine Type: |
2V91MW, Double -Cylinder, 4-Stroke, Sohc, Water-Co |
Steering System: |
Electric Power Steering |
Brake System: |
Dual Hydraulic Disc |
Age: |
Adults |
Transmission: |
Shaft |
Start-up: |
Electric |
Certification: |
EPA |
Maximum Speed: |
60-90 km/h |
Kind: |
Vari-Speed |
Condition: |
New |
Usage: |
Farm,Hunting,Sports, Others |
Color: |
Green,Khaki,Carbon Grey,White |
Displacement: |
800cc |
Product Description

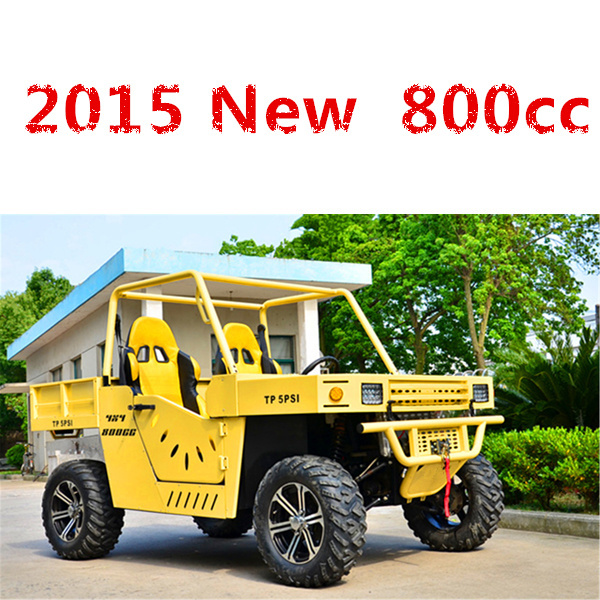

DMU800-04 800cc 4x4 shaft drive .
Specification:
Engine type | 2v91mw, double -cylinder, 4-stroke, sohc, water-cooled |
Displacement | 800cc |
Valve configurations | 8-valve |
Compression ratio | 10.3:1 |
Max.Torque | 73n.M/5000 rpm |
Max.Power | 44kw/6000 rpm |
Ignition type | Idi (inductive discharge ignition ) |
Spark plug | Ngk dcpr8e |
Gear oil | 400ml xp-s gl-5 gear oil |
Transmission type | L/h/n/r |
Product dimensions | L2860 mm,w1480mm,h1720mm |
Cargo box dimensions | L780 mm,w1270mm,h230mm |
Wheel span | 1180 mm |
Wheel base | 2030mm |
Front tire | 26*9-14 |
Rear tire | 26*11-14 |
Ground clearance | 300mm |
Minimum turning radius(mm) | 4600mm |
Max.Speed | 95km/h |
Steering system | Electric power steering |
Front suspension | Double arm independent suspension |
Rear suspension | Double arm independent suspension |
Brake system | Dual hydraulic disc |
Fuel capacity | 26l |
Curb weight | 590kg |
Cross-country power | Approach angle 800 removed angle 750 passing angle 350 |
Quantity: | 40hq 12pcs |
Color: | Green,khaki,carbon grey ,white (custom made) |
