Specifications
Prod Model: |
SLWDB01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Slwdb01 |
Motor: |
24V 200W |
Max Speed: |
7.8km/H(4.8mph) |
Driving Distance: |
28km |
Climb Degree: |
12° |
Ground Clearance: |
6.8cm |
Max Loading: |
260lbs |
Controller: |
Curtis Controller 24V 40A |
Seat Height: |
550mm(±30mm) |
Basket Load Ability: |
6.8kg |
Climbing Capability: |
12?? |
Load Capacity: |
100-200kg |
Accessories: |
LED Light |
Certification: |
CE |
Folded: |
Unfolded |
Voltage: |
24V |
Product Description

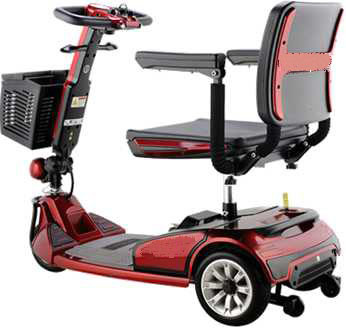

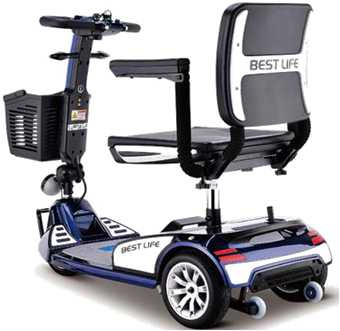

Electric wheelchair made from Sonlink E-bike Technology Co. , Ltd.
Wheelchairs model: SLWDB02
Motor:200W/24V
Max Speed: 7.8km/H(4.8mph)
Driving Distance: 28km
Climb Degree: 12°
Ground Clearance: 6.8cm
Max Loading: 260lbs
Seat Height: 550mm(±30mm)
Our strength products for exporting is light weight electric bike with high quality lithium battery and aluminum alloy frame, such as electric wheelchari, electric bikes, electric folding bikes, electric city bikes and so on. We always insist on offering high quality products and good service and support for our customers all over the world. And we always closely follow the world trend of electric bicycle, new items are released every year. So our products are welcomed by good quality, advanced style and good quotation, especially in europe, america, austrilia, and so on. Oem orders are also welcomed according to your detail requirments.Product images:
1.Turning radius | 125cm |
2.Battery power | 12V 20Ah X 2 |
3.Max speed | 7.8km/h(4.8MPH) |
4.Driving distance | 28km |
5.Climb degree | 12° |
6.Ground clearance | 6.8cm |
7.Max Loading | 117.93KG/260LBS |
8.Motor | 24V 200W |
9.Controller | Curtis Controller 24V 40A |
10.Seat height | 550MM(±30MM) |
11.Basket load ability | 6.8KG |
12.Charger | 24V 2.5A |
13.Charge time | 8-12 hours |
14.Tire Diameter | Front 18.3cm(8") Rear:23.3cm(9") |
15.Whole Vehicle Weight | 54KG |
16.Gross weight | 62KG |
17.Colour | red\blue\silver |
18.lights | LED head light,LED turn light,LED tail light, |
| LED emergency light,Horn |
19.Dimensions | 112x54x94CM |
20.Packing size | 117x58x52CM |
21.protectors | overload protector and low voltage protector |
22.Control panel | made from curtis in USA |
23.cable | pulg from molex in USA,cable with UL certification |
24.Seat | cover by PU material,and adjust 360 degree |
25.charger | split-type,wider band,universal.110V-240V |
26.Battery | acid batteries,12V/20AH,2pcs/set,Maintenance-free battery |
27.wheel | PU material,solid wheel,made from kexin in taiwan |
28.brake systems | electron brake systems |
29.Battery box | split-type box,independent charge |
30.Container | 80PCS/20FT,160PCS/40FT,200PCS/40HQ |
