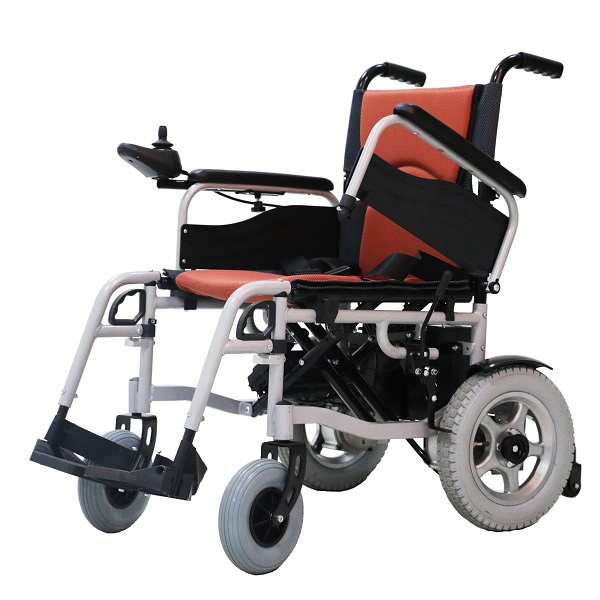

Electric Wheel Chair Mobility Scooter (Bz-6201)

Specifications

Prod Model:	BZ-6201
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	ISO 13485 and CE,SGS,MSDS
Frame:	Aluminum Alloy or Steel
Brake:	Electromagnetic Full Automatic
Anti-Tip Over:	Yes
Battery:	Detachable
Foldable:	Yes
Power Supply:	Electric-Powered
Type:	Wheelchair
Using Site:	Hip

Product Description

We r manufacture and exporter of electric power wheelchair and specialized in it, we have about 10 years experience in it. Automatic brake, when loosen the joystick, it will brake automatically. Power and manual dual function, when the battery is run out, pull out the cluth, it will be changed into manual. Very convenient. Armrest liftable, swing footrest detachable with heel loops. Battery detachable easy for folding and recharging. Good performance and luxurious appearance. Intelligent control, programmable Joystick, easy to operate. With luxurious seats, portable and durable. Foldable and safety, carry easily.

Application: Mobility scooters for the elderly, patients, disabled, handicapped, but can cooperate by one hand. Outdoors and indoors.


Features:
Weight Capacity: 120KG
Speed(forward): 0-6KM/H
Maximum Grade/Incline: 8
Brakes: Electromagnetic (Full-Automatic)
Controller: Beiz
Driving Range: 20KM
Speed(backward): 0-3KM/H
Motor: 300W*2 brushless motor
Batteries: 12V 12AH*2
Charge time: 6h

Specifications:
Overall Length: 1100mm
Overall Width: 60/62CM
Overall Height: 930mm
Seat Width: 43/45CM
Seat-to-Floor Height: 470mm
Armrest-to-seat: 215mm
Tires (front): 8inch
Turning Radius: 800mm
Weight w/ Batteries: 40KG
20'GP: 168PCS
40'HQ: 345PCS
Folded Length: 715mm
Folded Width: 325mm
Folded Height: 725mm
Seat Depth: 45CM
Backrest Height: 390mm
Armrest Length: 300mm
Tires (rear): 12inch
Carton Size: 730*340*740mm
Battery Weight: 9KG
