Specifications
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
---|---|
Load Capacity: | 100-200kg |
Climbing Capability: | 12?? |
Product Description

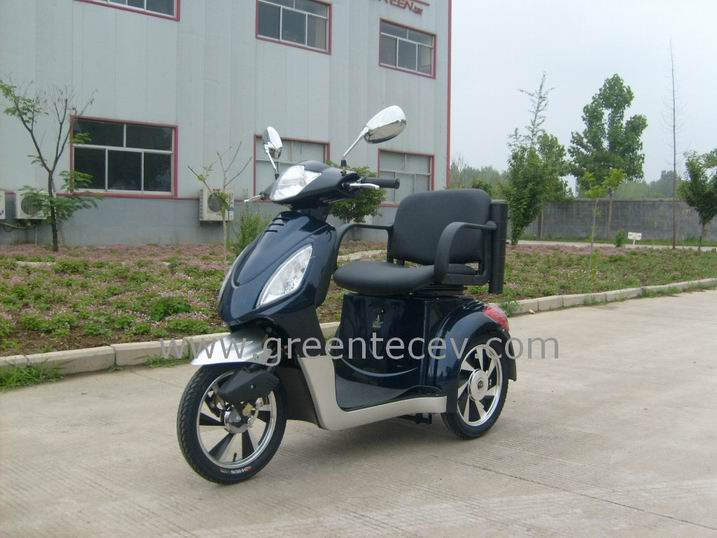

Electric mobility scooter S18-CMotor | 48v 500w Transaxle differential motor instead of wheel hub motor | ||
Battery | 48V, 20Ah Lead-acid battery | ||
Controller | 48V 23A, Intelligent Brushless Controller with EABS brake system | ||
Charger | Input AC110V/220v 50/60Hz, output: 56V, 2A Power: 180W Charge time: 6-8 hours | ||
Performance | Max. Speed | 25 km/h | |
RunningRange | 40--60km | ||
Loading | 120kgs | ||
Climbing Ability | ≤ 25% | ||
Components | Saddle | Adjustable saddle, optional lift armrest | |
Brake System | Front Drum brake, Rear Expanding Brake, with Parking brake | ||
Suspension | With two rear spring shock absorber on the frame | ||
Wheel/ Tire | 16x2.5inch, additional two rear wheelies anti roll-over | ||
Others | Digital burglar alarm, reverse switch at the handle bar | ||
Dimensions | LxWxH | 1550× 740× 1050mm | |
G. W/ N. W | 100kgs /85kgs | ||
Wheel track | 1070mm | ||
Packing | By metal frame and cartons, 1500x615x1090mm | ||
Container Loading | FCL QTY: 20ft/22PCS, 40ft /46PCS | ||
Color | Black, Silvery, Dark blue, Orange, Red or customized |
