Specifications
Prod Model: |
HSM-402 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max Speed: |
20-40km/h |
Product Description

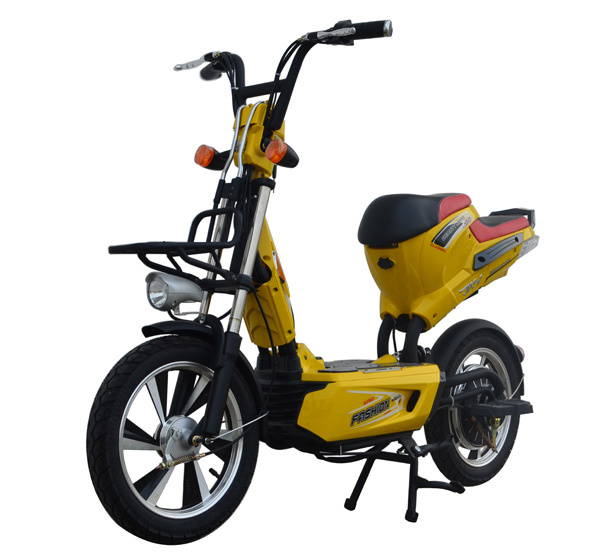

Modal HSM-402
Overall Dimension(mm) 1550× 660× 1160
Wheel base(mm) 1120
Battery capacity 48V12Ah Lead acid battery
Maximum Speed ≤ 35km/h
Distance range (flat road) ≥ 40km
Motor type Brushless hub motor
Motor(rated Power) 450W
Torque 40N. M
Charger input 220V/110V
Charging time 6-8h
Output of charger 2A
Controller 9 Pipes
Max current 27A± 1A
Min voltage 42V± 0.5 V
N. W/G. W(With battery) 35kg/52kg
Max. Loading capacity 120kg
Tires 2.5-16
Brakes drum / drum
Climbing 12°
Loading capacity 138PCS/40HQ
