Home Jinhua Zhenqi Motion Apparatus Co., Ltd. Electric Mini Scooter

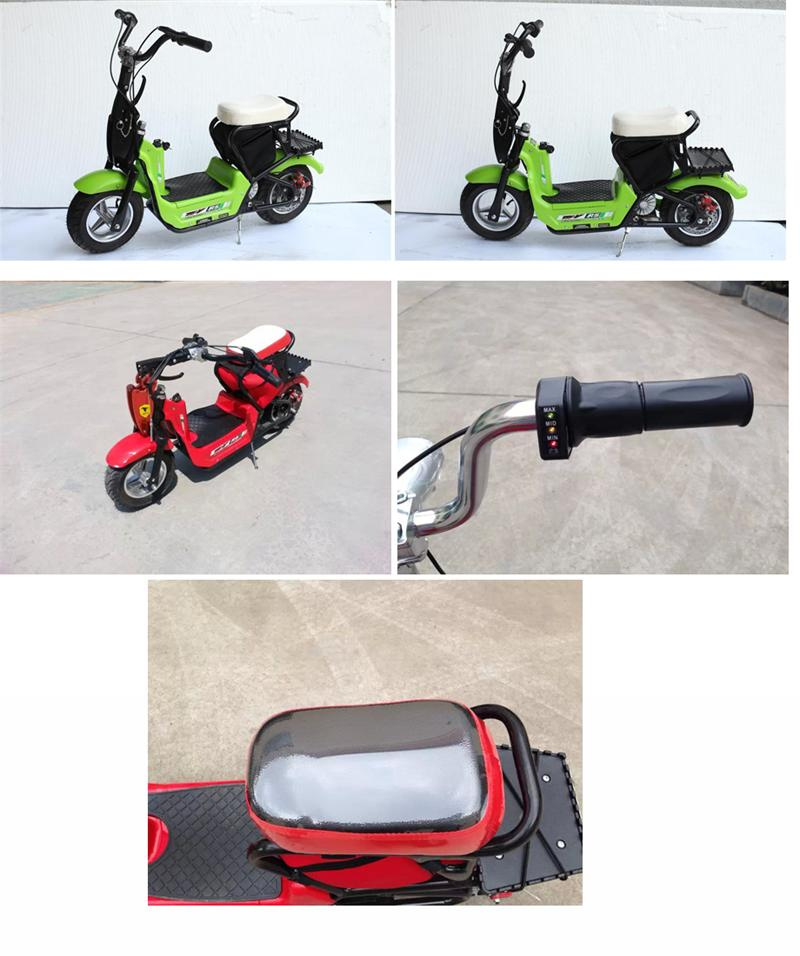

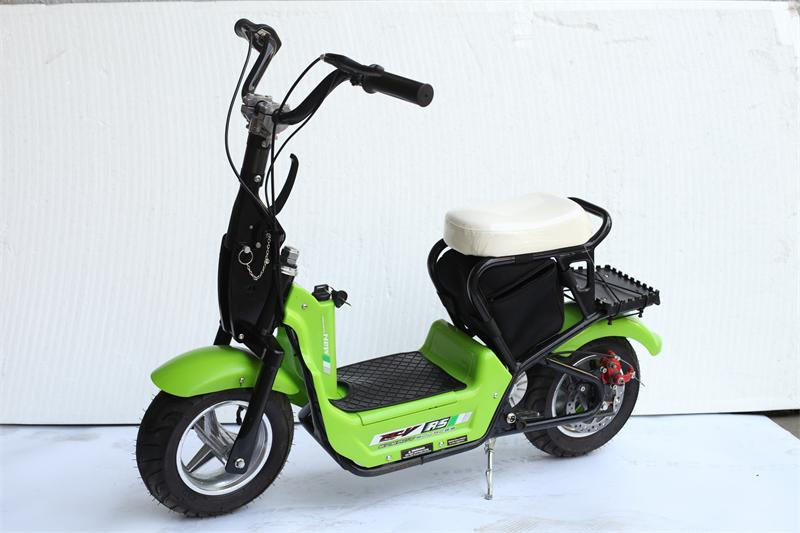

Electric Mini Scooter
| Price: | US $ 200-220/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 105/Piece |
| Pay Type: | L/C,T/T,D/P |
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Over Dimension(L*W*H): | 1110*600*850mm |
| Motor Type: | Brushed DC,350W/24V |
| Motor Max Loaded AMPS: | 26.4 |
| Torque: | 1.3(N.M) |
| Max Rpm: | 2700±7.5%(Rpm) |
| Controller Type: | Air Cooled,Non Water-Proof; Brake Shutoff,Charger |
| Battery: | Lea-Acid Battery,12V/10ah*2PCS |
| Turning Angle: | 30 |
| Seat Height: | 290mm |
| Wheel Base Distance: | 770mm |
| Running Distance: | <45KM |
| Motor: | Brush |
| Max Speed: | 20-40km/h |
| Battery Type: | Lead-acid Battery |
| Frame Material: | Steel |
| Voltage Of Battery: | 24V |
| Power: | 251-350W |
| Certification: | CE |
| Maximum Loading Capacity: | 75-120kg |
| Wheel Hub: | Alloy Hubs |
| Folded: | Folded |
| Charging Time: | 6-8h |
| Brake: | Mechanical Disc,Left Handle Control |
| Wheel Size: | 110/50-6.5 |
Product Description

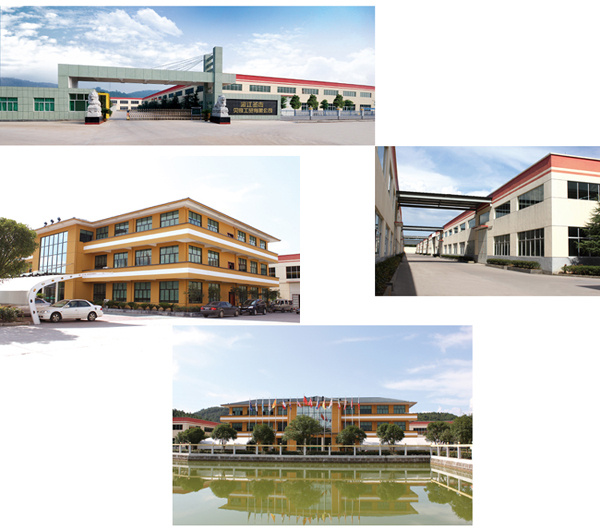

This is our factory
Specification
| Model | 350DH |
| Products Size(L*W*Hmm) | 1110×600×850 |
| Motor Type | brushed DC , 350W/24V |
| Motor Max Loaded Amps | 26.4A |
| Torque | 1.3(N.m) |
| Max RPM | 2700±7.5%(rpm) |
| Controller Type | Air cooled, non water -proof; brake shutoff, charger port |
| Battery | Lead-Acid Battery,12V /10AH*2pcs |
| Charging Time | 6-8 hours |
| Battery Charger | 1-1.5amps(~10% of battery ah)-UL approved |
| Special Features | Folding Handle bar |
| Turning Angle | 30º |
| Transmission Ratio | 82/11 |
| Seat Height | 290 mm |
| Wheel base Distance | 770 mm |
| Front & Rear Tire and Rim | 110/50-6.5 |
| Maximum Carrying Capacity | 75kgs |
| Mini Ground Clearance | 90 mm |
| Maximum Speed | 25 km/h |
| Maximum Distance Range | 20 km |
| Control System | handle bar control |
| Throttle Type | tum control |
| Front & Rear Braking System | Mechanical disc, left handle control |
| Drive System | Chian drive |
| Brake Distance | 4m |
| Packing Size(L*W*Hmm) | 1150×310×610 |
| N.W/G.W | 31kgs/36kgs |
| Container loading(20FT/40FT/40HQ): | 105/223/300 |
Loading capacity:
105pcs/20FT; 223pcs/40FT; 300pcs/40HQ
