Home Jinghua Dark Horse Moving Equipment Co., Ltd. Electric Cargo Motorcycle (DH-PS1-C8 Heavy Duty, Half Fence, Curtis Controller, 800W Motor)

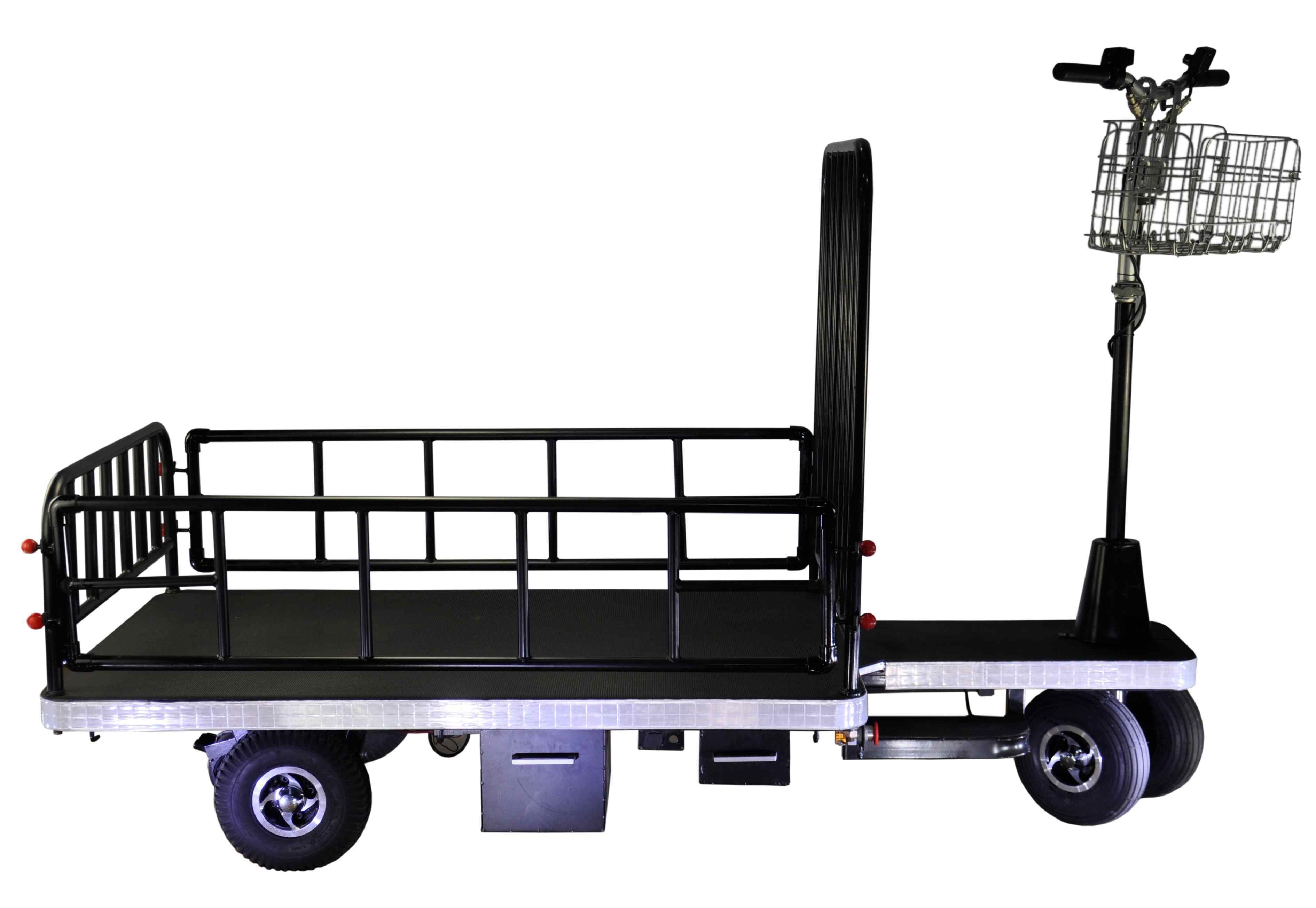

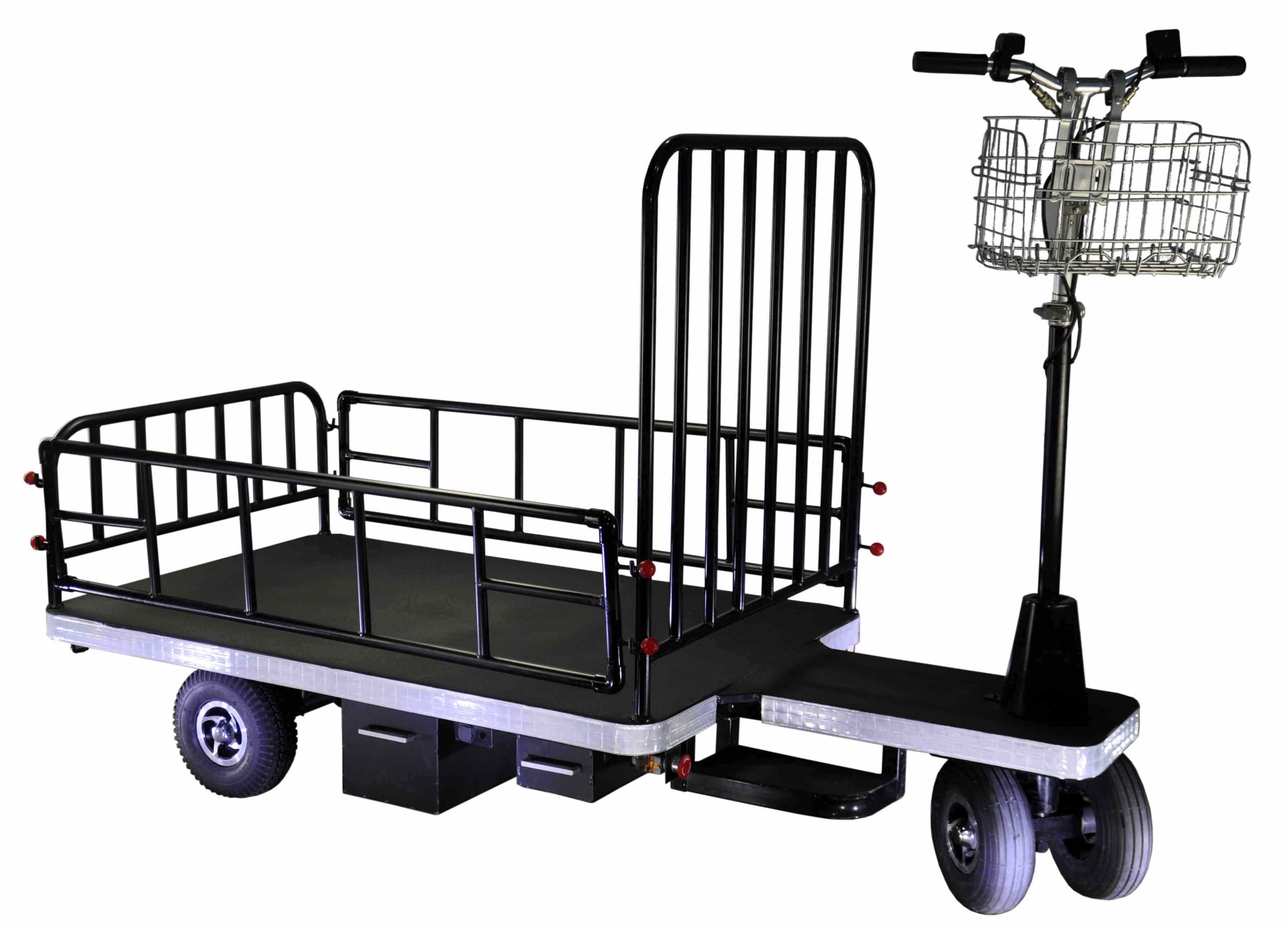

Electric Cargo Motorcycle (DH-PS1-C8 Heavy Duty, Half Fence, Curtis Controller, 800W Motor)

Electric Cargo Motorcycle (DH-PS1-C8 Heavy Duty, Half Fence, Curtis Controller, 800W Motor)
Price: US $ 800-1096/Piece
Trade Terms: FOB,CFR,FCA
Min Order: 1/Piece
Pay Type: L/C,T/T

Specifications

Prod Model: DH-PS1-C8 Heavy Duty, Half Fence
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Products Size: L210*W86*H142(Cm)
Table Height: 33cm
Speed: 8 Km/H
Brake: Magnetic Eddy Brakes
Controller: Curtis Controller 110an
Throttle: Chinese Finger Throttle
Battery: 24V 38an or 50an
Charger: Tai Wan Brand or Chinese Brand 5an or 8an
Charger Plug Type: European American British South Africa Australia
Customize Order: Customize Order Acceptable
Type: Cargo Motorcycle
Fuel: Electric
Certification: CE
Condition: New
Engine Type: 800W Motor
Engine Size: 800W Motor
Braking Mode: Magnetic Eddy Brake

Product Description

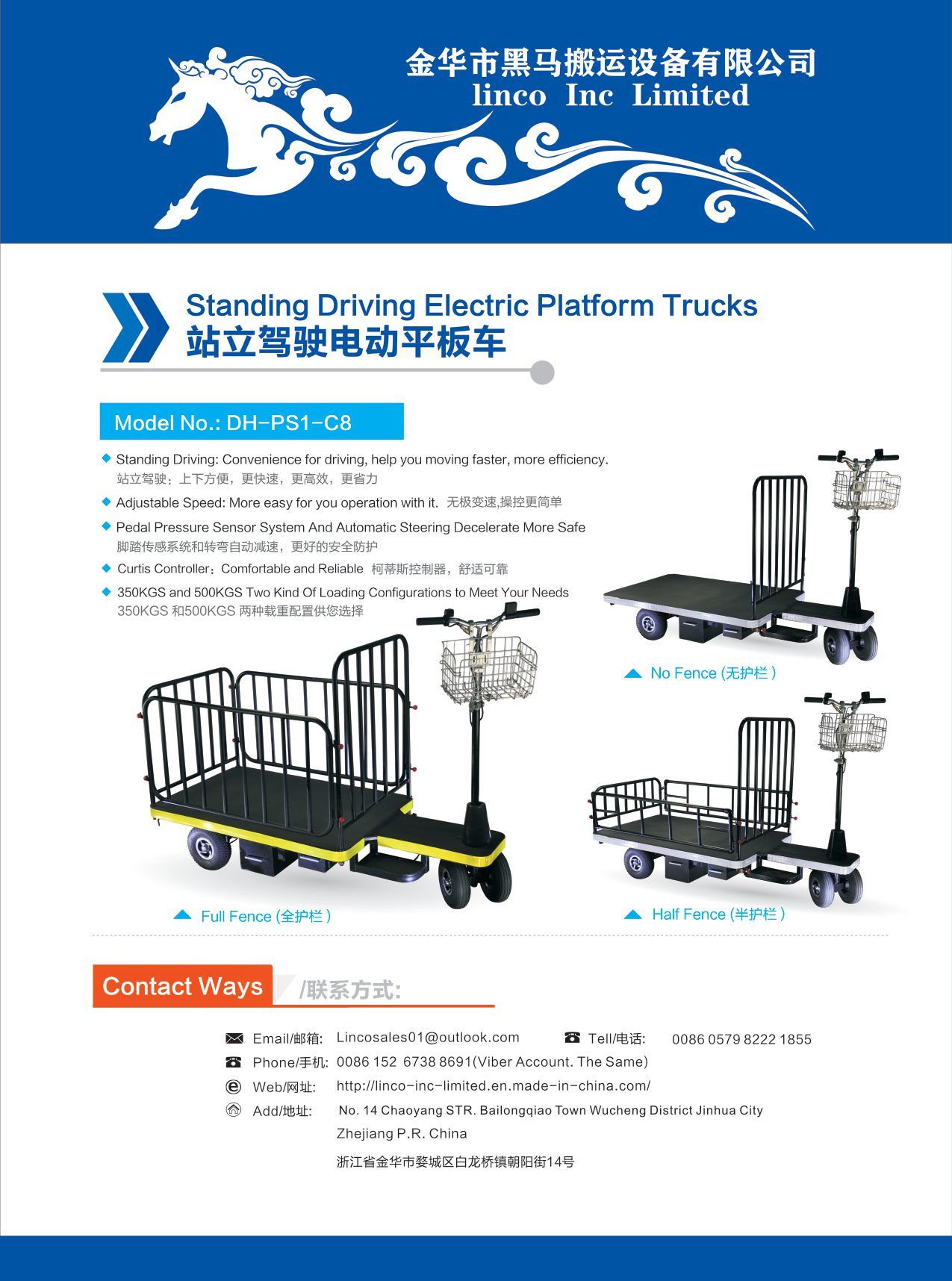

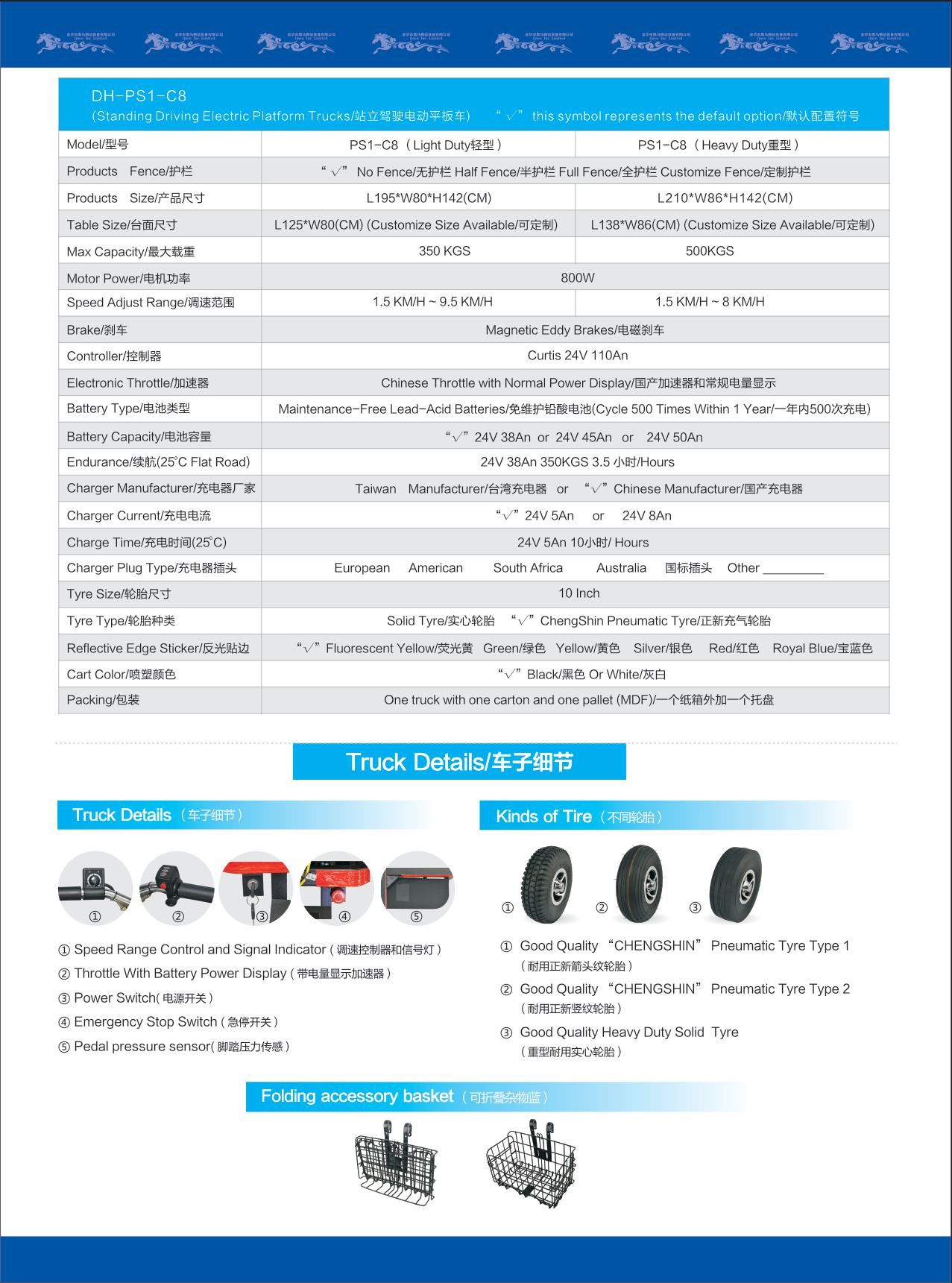

DH-PS1-C8
(Standing Driving Electric Platform Trucks)      " " this symbol represents the default option
ModelPS1-C8 (Light Duty)PS1-C8 (Heavy Duty)
Products Fence" " No Fence   Half Fence   Full Fence   Customize Fence
Products SizeL195*W80*H142(CM)L210*W86*H142(CM)
Table SizeL125*W80(CM) (Customize Size Available)L138*W86(CM) (Customize Size Available)
Max Capacity350 KGS500KGS
Motor Power800W
Speed Adjust Range1.5 KMH ~ 9.5 KMH1.5 KMH ~ 8 KMH
BrakeMagnetic Eddy Brakes
ControllerCurtis 24V 110An
Electronic ThrottleChinese Throttle with Normal Power Display
Battery TypeMaintenance-Free Lead-Acid Batteries (Cycle 500 Times Within 1 Year500)
Battery Capacity"2438An  or  24V 45An   or    24V 50An
Endurance(25ºC Flat Road)24V 38An 350KGS 3.5 Hours
Charger ManufacturerTaiwan Manufacturer   or   ""Chinese Manufacturer
Charger Current""24V 5An   or   24V 8An
Charge Time(25ºC)   24V 5An 10 Hours
Charger Plug TypeEuropean   American    South Africa     Australia     Other ________
Tyre Size10 Inch
Tyre TypeSolid Tyre     ""ChengShin Pneumatic Tyre
Caster Size6 Inch
Reflective Edge Sticker""Fluorescent Yellow  Green  Yellow  Silver  Red  Royal Blue
Cart Color""Black Or White
PackingOne truck with one carton and one pallet (MDF)

Note: As the times goes by, our trucks may will be improved but we could not update in time, so that the information may will be different, if you have any question or needs please contact with us and confirm!

Product Features Functions;

Controller: Curtis are one of the best American company for controller, the controller from them are working stable, reliable and comfortable, recognized around the world.

State-of-the-truck, self-diagnosticThe user interface indicator will immediately alert the operator to any problems relative to the brake, motor, batteries or controls. (The signal meaning commentary of indicator light attached in the instructions)

Our battery powered platform truck has a shorter turning radius for greater maneuverability in tight spaces

Max Speed Controller: You can according to your needs to restrict the max speed. (To meet with the different working place and people, our cart could set the max speed from 1 kmh to 9 kmh freely)

Foot Pressure Sensor: The electric truck will not work only when your feet tread on the pedal in position (The blue and red indicator light will light up when your feet tread on pedal, when the electric truck will start work).

Automatic steering deceleration system: The truck will slow down when you steering.(In order avoid people throw out by inertia when the truck steering. So our truck will auto deceleration when it steering).

Thermoelectric protection: When the truck overworking (such as overloading, uphill angle is too large, etc. ), current exceeds the safe operating range, it will automatically power off! Please reduce the load, and press the thermoelectric protection recovery button (on the battery case), than the truck will start working again!

Easy Assemble Easy to Transport: Our trucks are detachable, so that the package are saving for the shipping cost.

Magnetic eddy brakes: Loose your finger from the throttle the brake will start work, no inertia, not slip slope, more safe. (Disc brakes is difficult to stop the truck in a high speed or heavy loading. But magnetic eddy brake very stable, and strong brakes to easy to stop the truck, just releasing the accelerator handle the truck will automatically brake till the truck stop, and even parked on the ramp, also keep in the brake status, will not slide away! Only turn off the magnetic eddy brake, the truck can be push).

Removable Battery Box: Easy to removable battery box. (You can prepare one set of battery more if you need a super endurance )

Charge Protection: The electric truck will not working when it was charging. (It would cause safety accident or breaks your truck if the user continue to use is it when it was charging ).

Integrated Parts: We integrate our trucks' parts, that means in most of the condition, we can easy and quick to fix the truck with a low cost. It will be very easy and good for the customer after sales service.

One-year parts warranty (includes electronics): One-year parts warranty (includes electronics) stands behind our products and provides the best customer service in the industry.

Operating Instructions:
1. Insert the power key into the power switch and turn the power on. And now the red indicator will light up.

2. Stand on the electric truck, 2 feet tread on pedals in position. Now the blue indicator will light up.

3. Adjust the speed switch, and turn it to the speed you need.

4. Watch out in front of you, and Push the finger throttle lightly. Now the electric truck will start moving. When got your destination, you just release your finger from the throttle, then it would stop softly.

5. On the throttle have one red transform button, it controls the truck moving forward or back.

6. On the throttle also included the power indicator, full power is green light, half power is orange light, Empty is red. Please don't forget charge after use, try to keep the battery power in green light condition, it is good for battery using life.

7. Please do not forget turn off the electric truck after use, and have to turn off the power before you charge.







Application Scope
GreenhouseWarehouseFactoryHospital
Express CompanySuper MarketHotelGarden
ParkHomeFlea MarketLogistic



Precautions;

1. Please Keep water, dust, high temperature and strong electromagnetic interference from it.

2. Please do not overworking using the truck.

3. Please stay focused when you operation.

4. Please kick the emergency button to stop the electric truck immediately if there are any unforeseen circumstances happen.

5. Please do not try to disassemble the electric truck by yourself, if have any problem Please contact with dealer or professional engineer.

Market Background and Company Brief Introduce

With the development of the world economy, science and technology. People requires better standard for living and working environment. And also due to negative population growth, aging population, the labor scarcity problem were more seriously. So for now improve the efficiency, saving the labor resources, and create a Eco friendly, comfortable and safety working environment were more and more important.

As electric was environmentally friendly renewable energy,it has been the main energy for human. So using the electric power to help us working easier and quicker is one of the best choice. Our company was started research, design and production the Electric Circuit Control Systems at 2005, after many years development, accumulated experience and technology. At the year of 2013, we are started to involved into the electric material handling equipment, up to now we have been created different kind of type electric truck for different purposes and occasions. As our design meet with the customers' needs, excellent quality and good after sales service, so that our products concerns and favor by our customers. Hope you can give us a chance to cooperation with you, we believe that we will satisfy with your needs and get win-win benefit. Thanks for your reading and hope you a nice day!

Warm Tips;
Customized electric truck are available, if have any question or ideas, please do not be hesitate to contact with us!

Contact Ways:
Tell:   0086 0579 8222 1855
Phone:  0086 152  6738 8691
Add:    No. 14 Chaoyang STR. Bailongqiao Town Wucheng District Jinhua City
        Zhejiang P.R. China
