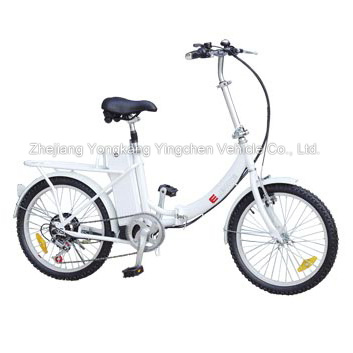

Electric Bicycle (YCEB-7601)

Specifications

Prod Model:	YCEB-7601

Product Description

Motor: 180-250W High Speed Brushless Gear motor
Controller: ___
Pedaling Run/Pedaling-Electric Assist Run
Option: Pure Electric Run Model
Overload protection, Low voltage protection
Battery: 24V 12Ah Lead-acid battery
Charger: 100-240VAC50-60Hz, 2A amps smart charger
Charge time 4-6 hours
Max Speed: ≤ 25Km/h
Range: E-bike mode 20-25km,
PAS/Pedaling-Electric mode 45-55km
Load capacity: 100kg
Weight: Lead-acid battery 8.75 kgs

N. W. /G. W.: 30.5kgs/35.5kgs
Product Size: 1550*1100*560 mm
Carton Size: 1400*280*700 mm
Capability: 104PCS/20', 200PCS/40', 236PCS/40' HQ
Frame: Steel Q235
Tyres: 20"*1.95", puncture resistant K-shield(INNOVA)
Rim: Steel
Spokes: 13G steel
Brakes(front): V brakes
Brakes(Rear): V brakes
Gears: _
Front fork: Front Fork
Handle bars: Steel
Chainguard: ST14
Mudguard: ST14
Chainwheel: Steel 36t T, steel crank
Chain: Rust resistant chain
Stander: Steel central stander
Rear carrier: Steel
Saddle: GEL Cruiser saddle
Seat Post: Steel with suspension
