Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Fuel Capacity: |
3.5l / 0.77gal. |
Transmission: |
Five-Speed With Manual Clutch, 1-N-2-3-4-5 |
Certification: |
EEC |
Engine: |
4 Stroke |
Displacement: |
≤50CC |
Starting System: |
Electric-Kick Start |
Product Description

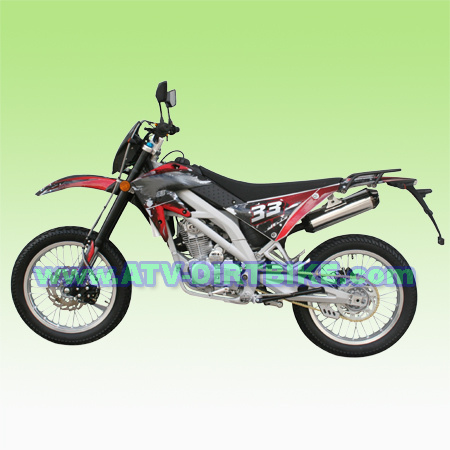

EEC&COCORION 33-50L
Engine Type: Four-stroke, single cylinder, electric-kick start
Cooling: Air cooled
Displacement: 49.5ml
Bore x stroke: 39x41.4mm
Compression ratio: 9.0: 1
Max power: 2.0Kw/7500rpm(1± 5%)
EEC&COCORION 33-50L Engine | | |
| Four-stroke, single cylinder, electric-kick start |
|
Cooling: | Air cooled | |
Displacement: | 49.5ml | |
Bore x stroke: | 39x41.4mm | |
Compression ratio: | 9.0:1 | |
Max power: | 2.0Kw/7500rpm(1±5%) | |
Ignition: | CDI | |
Transmission: | Five-speed with manual cluth, 1-N-2-3-4-5 |
Front suspension : | Inverted and hydraulic fork |
Rear suspension: | Hydraulic and damping shock absorber |
Front brake: | Hydraulic single disc with dual piston caliper |
Rear brake: | Hydraulic single disc with dual piston caliper |
Front tire: | Motard 100/90-18 Motard 90/90-18 Knobby 80/100-21 |
Rear tire: | Motard 100/90-18 Motard 100/90-18 Knobby 110/90-18 |
Overall length: | 2240 X 830 X 1150mm |
Wheelbase: | 1450mm/57.1in. |
Ground clearance: | 350mm/13.8 in. |
Seat height: | 870mm/34.3 in. |
Dry weight: | 101 kgs/222.7 lbs. |
Fuel capacity: | 3.5L / 0.77gal. |
Carton size: | 1840X450X890mm |
Loading Qty :(20ft/40'ft/40'Hq) | 38/77/93 pcs |
