Specifications
Prod Model: |
ADP800B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission: |
Shaft |
Start-up: |
Electric |
Certification: |
CE |
Displacement: |
>400CC |
Maximum Speed: |
>90 km/h |

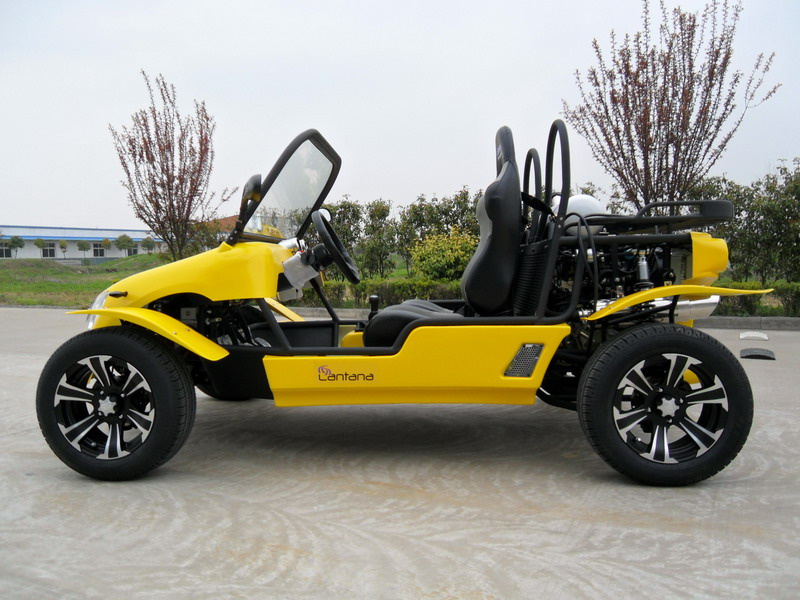

Product Description
ADP is specially in the producting for racing cak. Through seveal years experiments, we create an excellent product combined with etertainment & passion, to realease enthusiasm. After a lot time testing in the mountain, the fuction and safety had been updated perfectlly and guranteened.
Equiped:
Luxry Aluminium Alloy Wheels
Advanced Fuel Injection Technology
Optional:
Extra Luxury Spotlights
Hard plastic cover top
Leather cover top
MP3
Trailer assembly
Top box
Tool box under seat:
Visor
ECU leather cover
Padding
Engine |
|
Engine Type |
4-stroke, 3 cylinder, DOHC, |
Displacement |
812cc |
Fuel System |
Electronic Fuel Injection |
Cooling Liquid |
Liquid |
Bore X Stroke |
72mmX66.5mm |
Compression ratio |
9.5: 1 |
Idle |
900± 50 rpm |
Maximum power |
38 kw @ 6000rpm |
Maximum torque |
70 NM @ 3500-4000rpm |
Drivetrain |
|
Transmission/Final Drive |
Manuals 1/2/3/4/R Shaft |
Drive System On-Demand True AWD/2WD |
2WD |
Engine Braking System |
Equipped |
Max. Speed |
90km/h |
Suspension |
|
Front Suspension |
Dual A-Arm |
Rear Suspension |
Dual A-Arm |
Brakes |
|
Front/Rear Brakes |
4-Wheel Hydraulic Disc |
Parking Brake |
Hand-Actuated |
Tires / Wheels |
|
Front Tires |
25 x 8-12(OFF ROAD) 165/70R14(ON ROAD) |
Rear Tires |
25X10-12(OFF ROAD) 195/60R14(ON ROAD) |
Wheels |
Cast Aluminum |
Dimensions / Capacities |
|
Wheelbase |
2020 mm |
Net Weight |
540 kg |
Overall Vehicle Size (L x W x H) |
2950 mm X 1750 mm X 1500 mm |
Ground Clearance |
295 mm |
Seat Height |
420mm |
Fuel Capacity |
22L |
Rear Box Capacity |
100 kg |
Maximum tractive force |
600 kg |
Features |
|
Lighting, High/Low |
12V 35W/35W |
Instrumentation Digital Gauge |
Speedometer, Odometer, Hour Meter, Coolant Temp Meter, Rear Gear Indicator, Fuel Indicator, Hi Lights Indicator, |
Packing |
|
Packing Size |
2930mmx1880mmx1100mm |
Qty Of Package |
20' 4PCS / 40' 8PCS |
