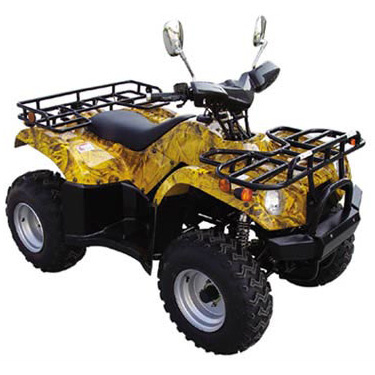

Home China Xinsheng Group Co., Ltd. EEC ATV (XS-ATV022)
Specifications
| Prod Model: | XS-ATV022 |
|---|
Product Description
Body size(mm): 1880 x 1070 x 1100Carton size(mm): 1925 x 1130 x 860
Container: 36pcs/40HQ
Dry/ Gross Weight: 200/240 kg
Axle span(mm): 1150
Wheel span(mm): Fr:735 Re:810
Max speed(km/h): 75
Fuel tank volume: 5.5L
Gasoline brand: 90#leadless gasoline
Brake device: Fr: Disc brake Re: Disc brake
Tire size:Fr: 23 x 7.00-10 Re:22 x 10-10
Engine type: Single cylinder,4 stroke, Air cooling
Transmission System: gear transmission, with reverse, four speed, automatic clutch.
Displacement: 175CC
Compression ratio: 9.2:1
Igniting way: C.D.I
Max torque: 10.0/5500 N.m(r/min)
Starting way: Electric start
Rated power: 7kw/7500r/min
