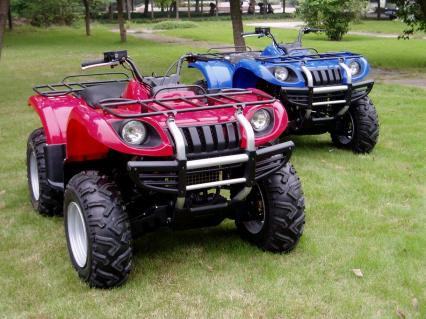

EEC ATV (PH-650A9)

Specifications

Prod Model:	PH-650A9

Product Description

EEC ATV (PH-650A9)
Dimensions and Masses
Overall dimensions: 2100x250x250mm
Wheelbase: 60mm
Axle distance: 1285mm
Min. Ground clearance: 270mm
Turning radius<2500mm
Dry weight: 340kg
Max. Payload: 220kg(40kg for front rack, 80kg for rear rack and one occupant)
Max. Total weight: 560kg
Main Performance Parameters
Economic speed fuel consumption: 299g/KWh(220g/ps. H)
Max, speed: 75km/h
Climbing angle >40
Drive system: 4-wheel-drive
Brake system: Front Disc/ rear Disc
Engine
Type: Dual-cylinder, four-stroke, water-cooled
BoreXstroke: 76X71mm
Total displacement: 746cm3
Compression ratio: 8.4: 1
Standard power output: 20.6kw/5300rpm
Max. Power output? : 22kw/5500rpm
Max. Torque: 47.1N. M/2700~3300rpm
Starting mode: Electrical
Ignition mode: CDI
20'container: 10pcs
40' and 40'HQ container 20pcs
