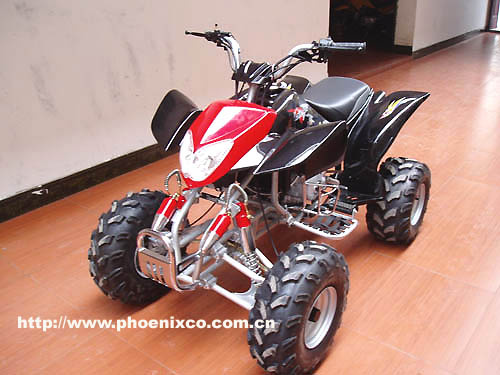

EEC ATV (PH-200A11-B)

Specifications

Prod Model:	PH-200A11-B

Product Description

EEC ATV (PH-200A11-B)

1) Engine type: Single cylinder, Four-stroke, Water-cooled

2) Displacement(ml): 196

3) Ignition method: CDI

4) Lubricating system: Pressure splash

5) Max. Power (Kw/r/min): 10.8/8000

6) Max. Torque (N. M/r/min): 13/6500

7) Start mode: Electric mode

8) Dimensions(L*W*H): 1710*880*1040

9) Shaft base(mm): 1110

10) Min ground clearance (mm): 120

11) Net weight(kg): 110

12) Tyre, front: AT 19*7-8/2.9Psi

13) Tyre, rear: AT 18*9.5-8/2.9Psi

14) Brake type(front/rear): Drum/disk

15) Transmission mode: Chain

16) Reverse gear: With

17) Front shock absorbers: Sealed air chamber

18) Front suspension: Double 'A' swing arm

19) Gear suspension: Mono shock swing arm
